Description
Product Introduction

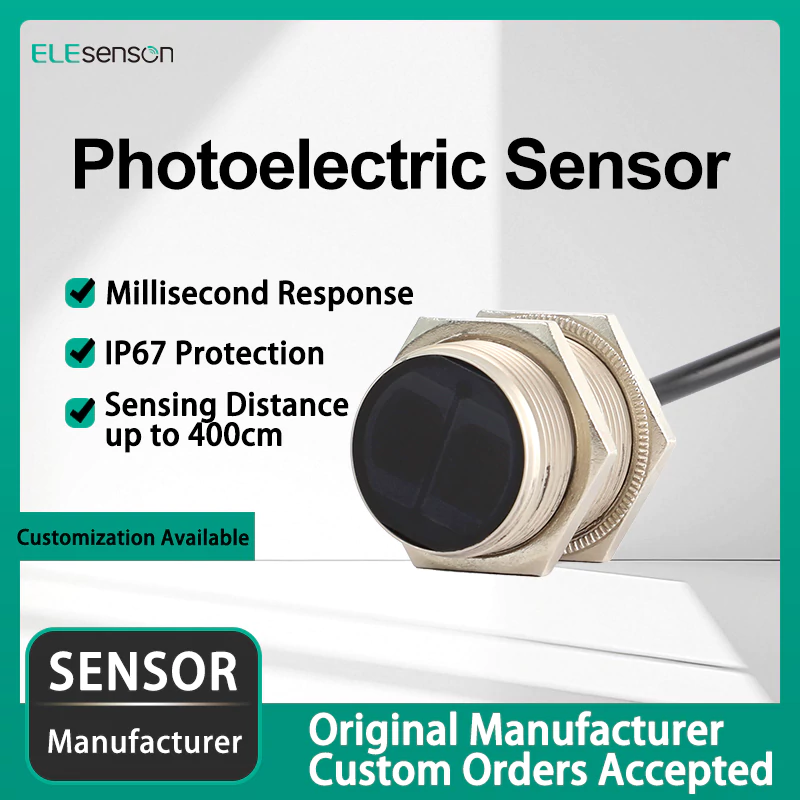

This photoelectric sensor is a smart non-contact proximity switch integrating infrared receiving and control. With anti-sunlight interference capability, it works stably in direct sunlight. Long sensing range up to 400cm, suitable for indoor and outdoor industrial applications.
Product Features
• Non-contact detection design, no physical contact with detected objects

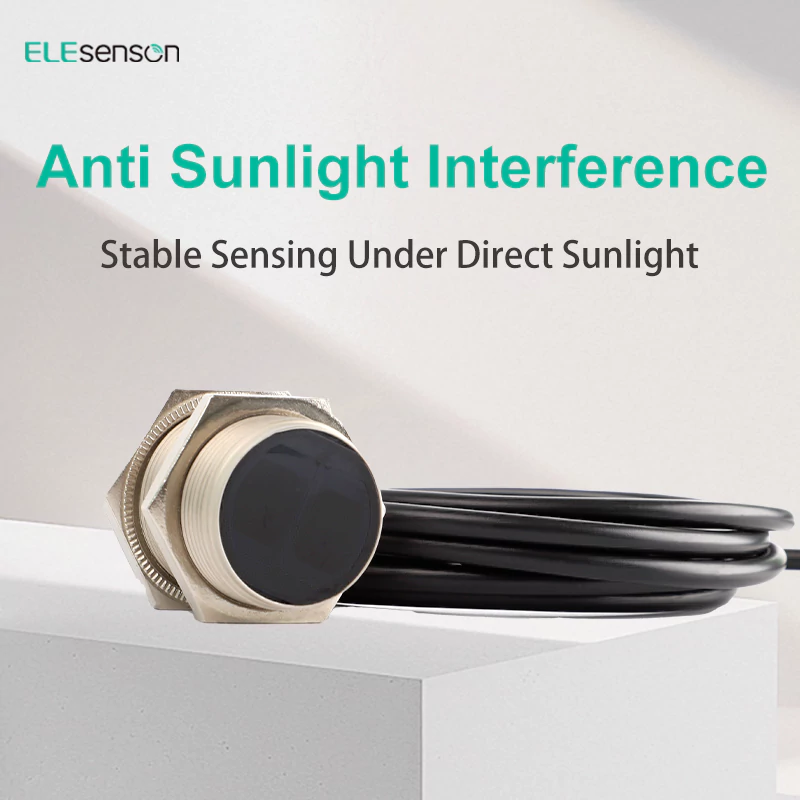

• Excellent anti-sunlight interference performance, stable operation under direct sunlight

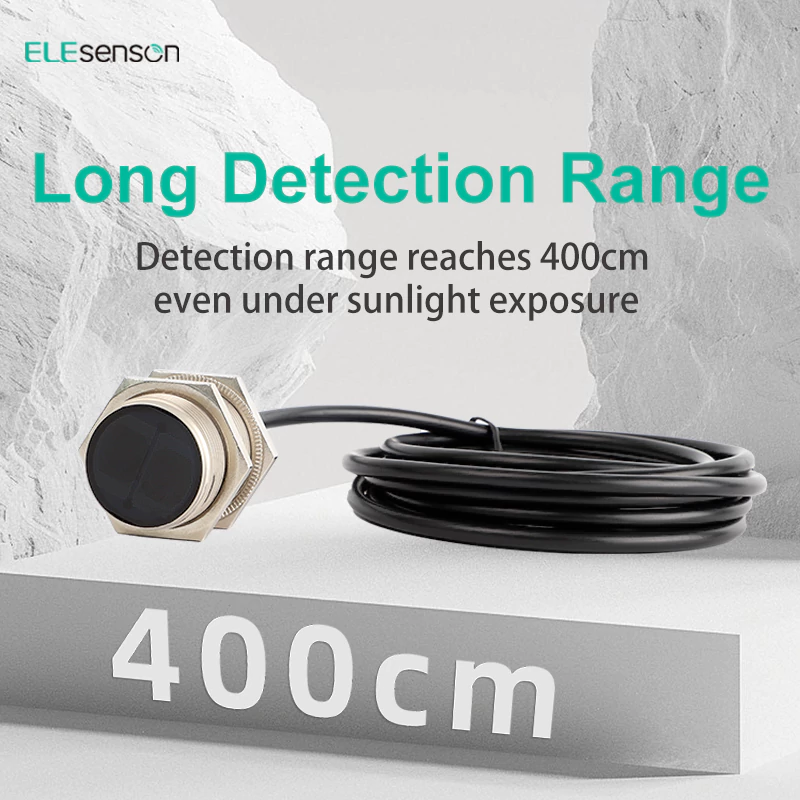

• Long sensing distance: up to 400cm for indoor & outdoor installation
• Highly sensitive response, instantly outputs signal once objects enter or leave detection zone
• High detection accuracy, reliable recognition for a wide range of target objects
• Aviation aluminum housing with IP67 waterproof rating, robust for harsh environments
• Wide operating voltage DC 3.3V~35V, wide temperature range -20℃~85℃
• CE certified, long 2m cable (customizable in bulk order)
Product Specifications
| Technical Specifications | |||
|---|---|---|---|
| Name | Indoors | Outdoors | Direct sunlight |
| Operating voltage | DC 3.3 V~35V | ||
| Sensing range | 5cm~400cm | 5cm~400cm | 5cm~300cm |
| Detection accuracy | ±15cm | ±20cm | ±40cm |
| Response time | ≤400ms | ||
| Detection angle | 30–40° cone angle | ||
| Detection method | Active | ||
| Standby current | <4.0mA | ||
| Load current | 50~200mA | ||
| Operating temperature | -20~85℃ | ||
| Storage temperature | -20~85℃ | ||
| Cable length | 2 m (±10 mm) (customizable for bulk orders) | ||
| Material | Shell: Aircraft-grade aluminum | ||
| Water resistance | IP67 | ||
| Safety Standards Certification | CE | ||

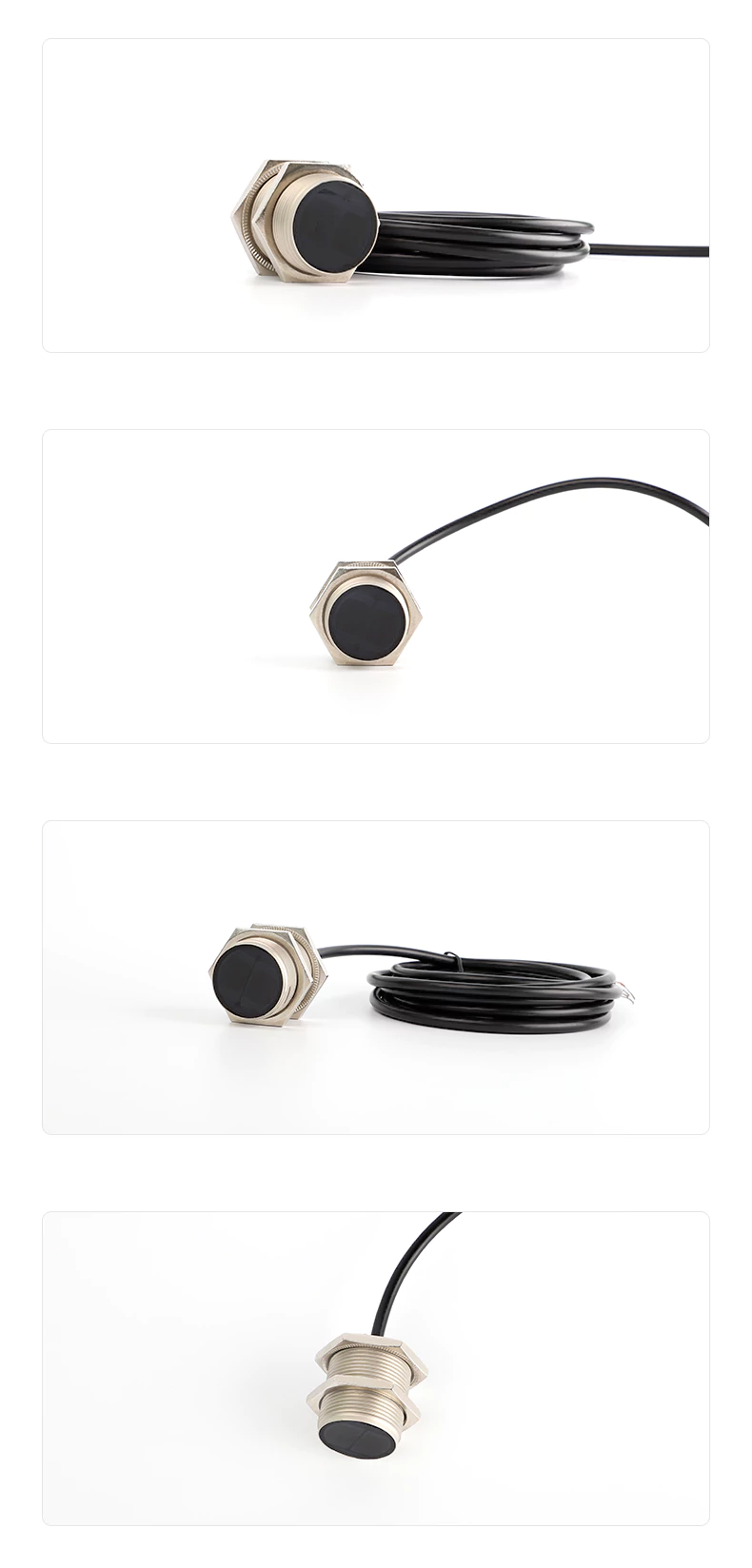

Product Details
