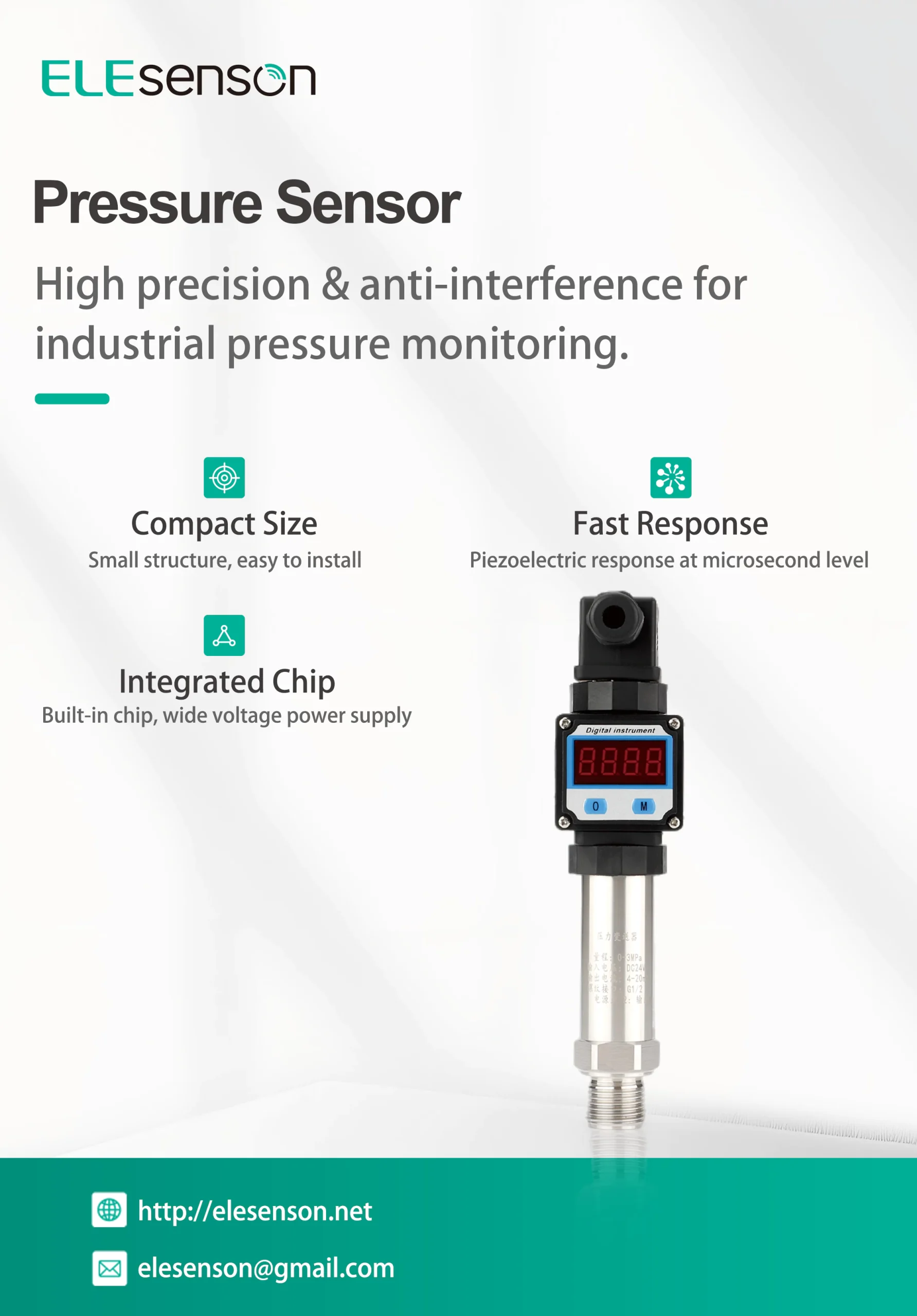

Pressure Sensor of E308 series delivers high‑precision real‑time monitoring for liquid and gas pressure in harsh industrial environments.
This E308 pressure sensor adopts diaphragm isolation technology with integrated sensing chip. It features compact structure for easy installation, strong anti‑interference capability, together with current‑limiting, voltage‑limiting and reverse‑connection protection for current output version. Constructed with 316L stainless‑steel diaphragm and 304 stainless‑steel housing, it reaches IP65 protection grade, suitable for long‑term stable operation under complicated working conditions.
The E308 industrial pressure transmitter supports measuring range from 0‑0.6MPa to 2.5MPa, providing 4‑20mA analog current output and RS485 Modbus‑RTU digital output. With accuracy class 0.5%FS, shock resistance up to 10g and 200%FS overload capacity, it performs reliably for constant‑pressure water supply, thermal systems, heat‑exchange stations, injection molds, environmental monitoring and mining monitoring.
Download our complete pressure sensor product manual to view full technical specifications, dimension drawings and wiring instructions for your hydraulic and process‑control system integration.
