Description
Product Introduction

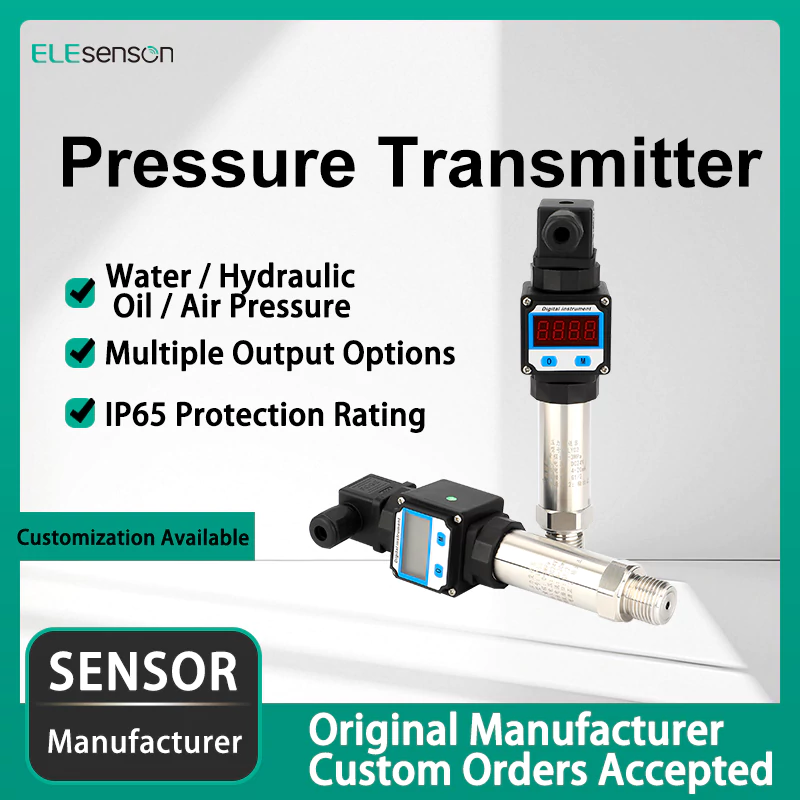

This aftermarket pressure transmitter provides real‑time and accurate pressure measurement for liquid and gas media. Built‑in diaphragm isolation, anti‑interference circuitry and IP65 protection, ideal for diverse harsh industrial working conditions.
Product Features
• Real‑time, precise detection of pressure variation for liquids and gases
• Adopts professional diaphragm isolation technology for stable measuring performance
• Integrated chip supports wide‑voltage power supply with strong anti‑interference capacity
• Multiple circuit protection: current‑limiting, voltage‑limiting and reverse‑connection protection
• Compact body design, simple and convenient for on‑site installation
• 304 / 316L stainless steel wetted components, adapts to multiple media types

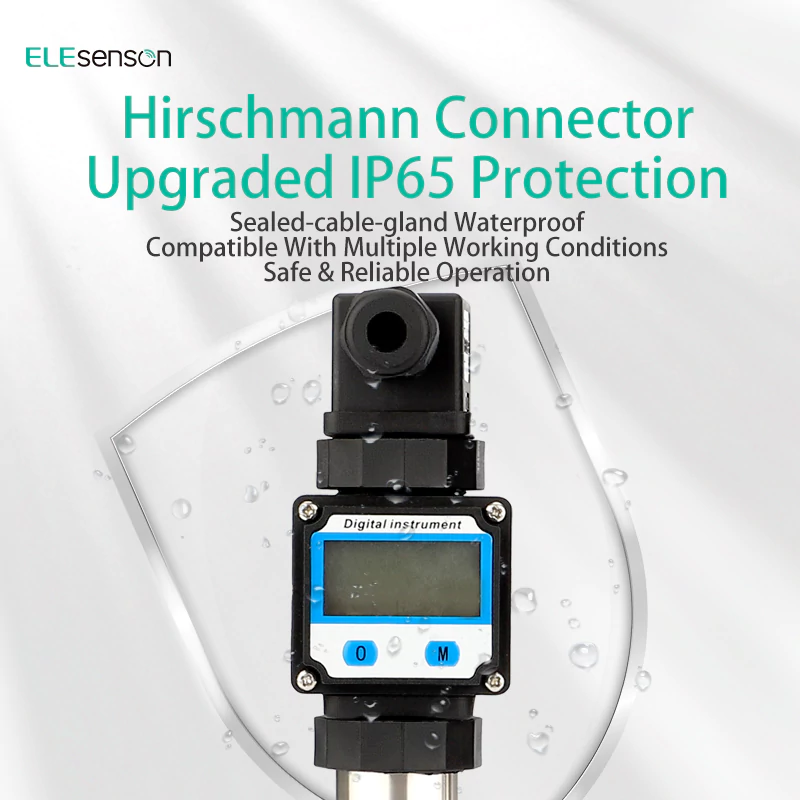

• Hirschmann connector with IP65 protection grade, good dust‑proof and water‑proof performance
• Stable signal output, suitable for general industrial automation equipment
• Cost‑effective aftermarket replacement for sensor maintenance and equipment upgrade
Product Specifications
| Technical Specifications For more technical specifications, please contact customer service. | |
|---|---|
| Item | Technical Specifications |

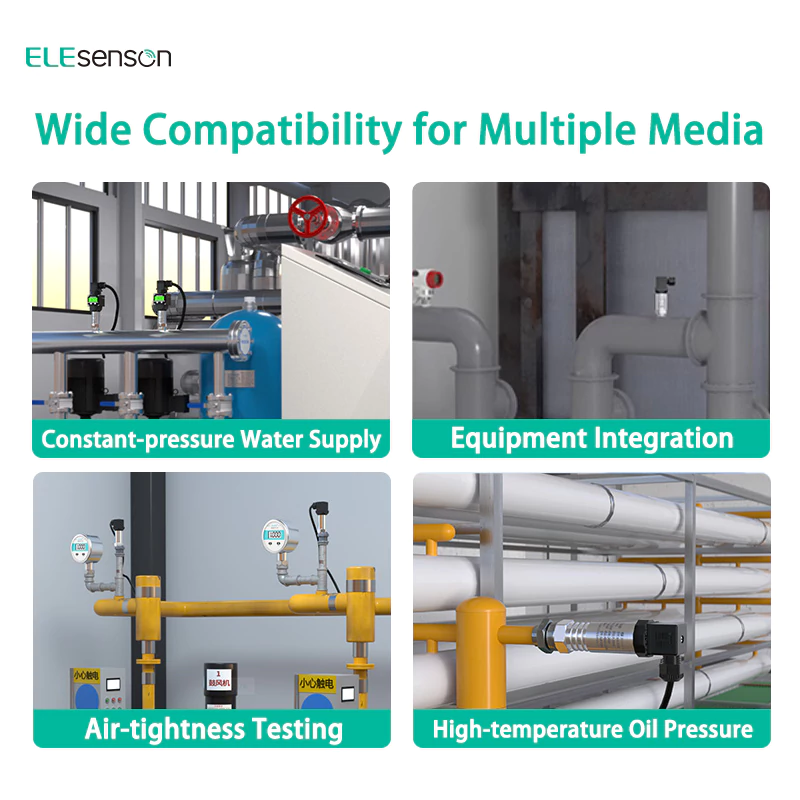

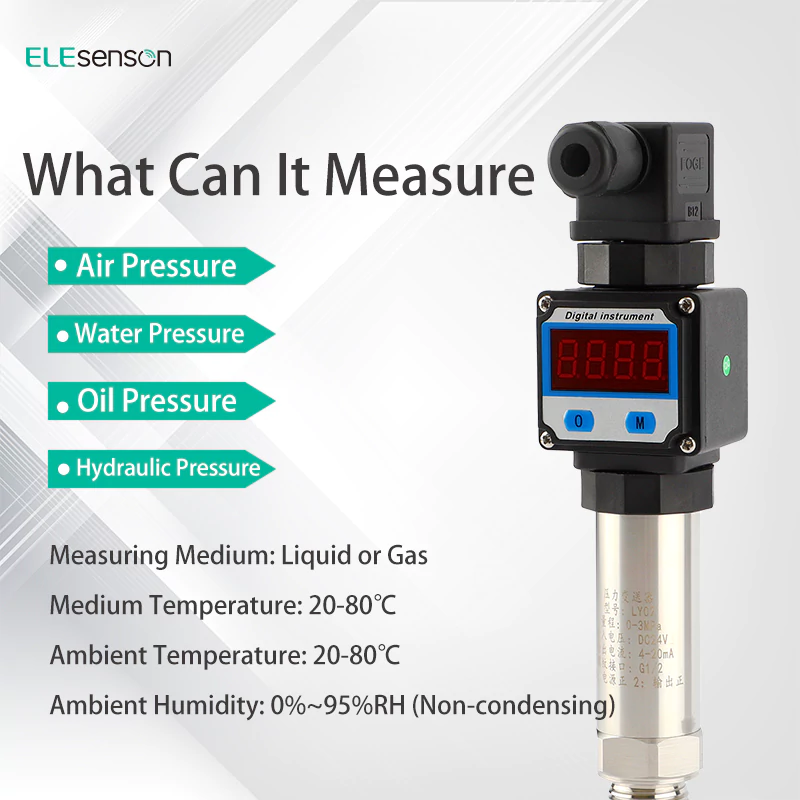

| Measured medium | Liquid or gas (compatible with contact materials) |
| Overall Materials | Diaphragm: 316L stainless steel (in contact with process) | Process connections: 304 stainless steel (in contact with process) Housing: 304 stainless steel | Seals: Nitrile rubber (in contact with process) | Hirschmann connectors: ABS engineering plastic |
| Pressure range | 0‑0.6~2.5MPa |
| Pressure Type | Gauge Pressure |
| Output signals | 4–20 mA, RS‑485 (standard Modbus‑RTU protocol) |
| Supply voltage | 8‑30VDC |
| Accuracy class | 0.5%FS |
| Operating Conditions | Fluid Temperature: 20–80°C | Ambient Temperature: 20–85°C Ambient Humidity: 0–95% RH (no condensation) |
| Temperature compensation | 10~70℃ |
| Seismic performance | 10g(20~2000Hz) |
| Overload capacity | 200% of full scale |
| Frequency response | Analog signal output: 10–2400 Hz Digital signal output: 10–40 Hz |
| Temperature drift | Stability: ±0.2% FS/year ±0.02% FS/°C (within the temperature compensation range) |
| Total weight | ≈190g |
| Protection Rating | IP65 Note: The above protection ratings apply to the power range achieved after the electrical connections are complete: Current‑type ≤ 0.02 Us (W) Digital‑type ≤ 0.015 Us (W). Note: Us = supply voltage |
| Load characteristics | Current‑type load ≤ {(Us – 7.5) ÷ 0.02 (Us = supply voltage)} Ω |
Product Details
