Description
Product Introduction

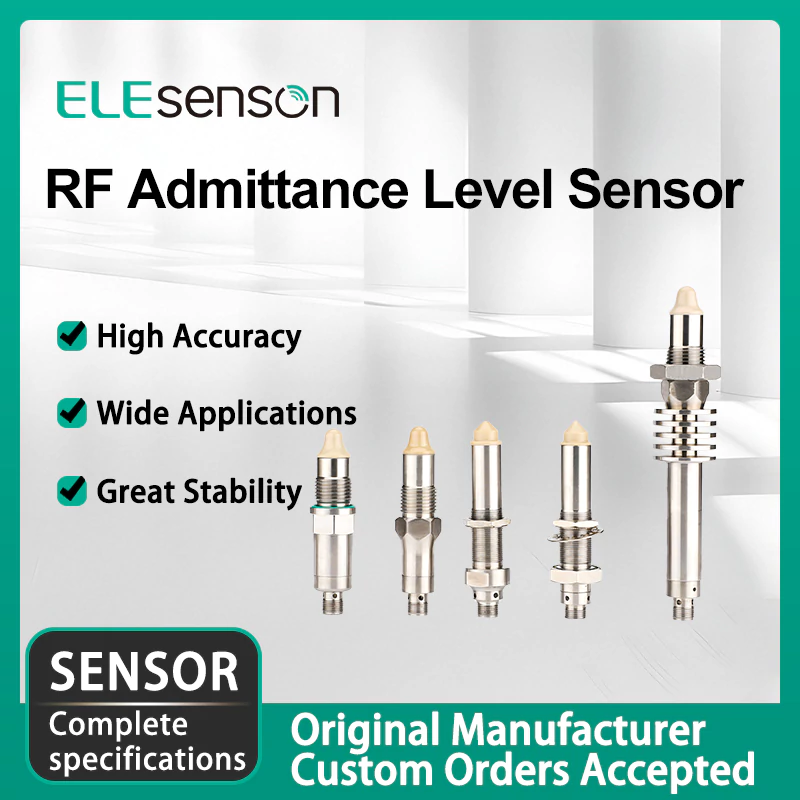

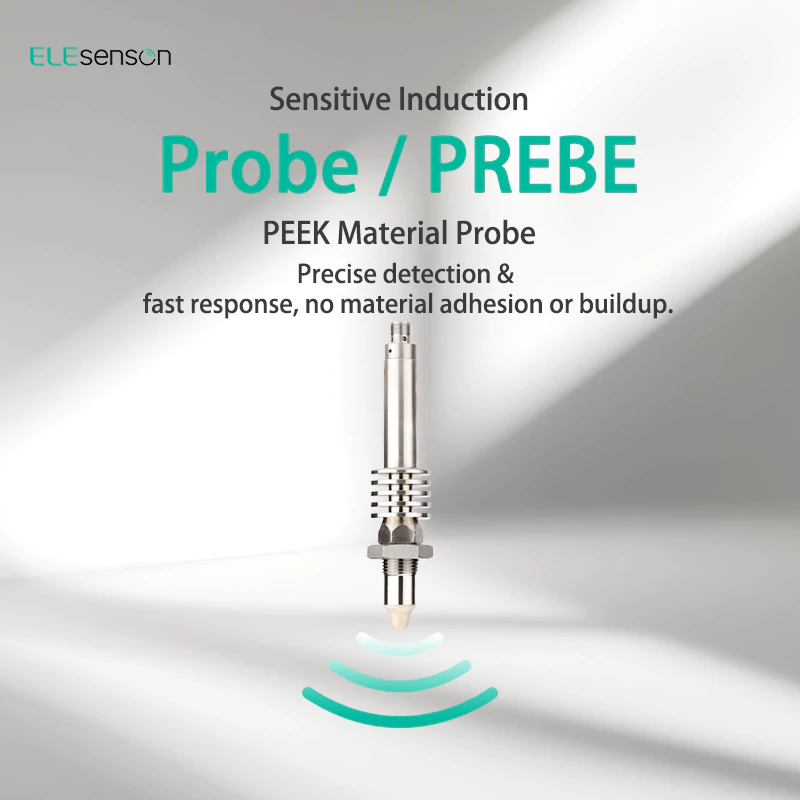

RF admittance level sensor adopts intelligent radio frequency capacitance technology, no mechanical moving parts. It avoids parasitic capacitance interference that troubles traditional capacitive sensors, delivering stable and high-precision level detection.

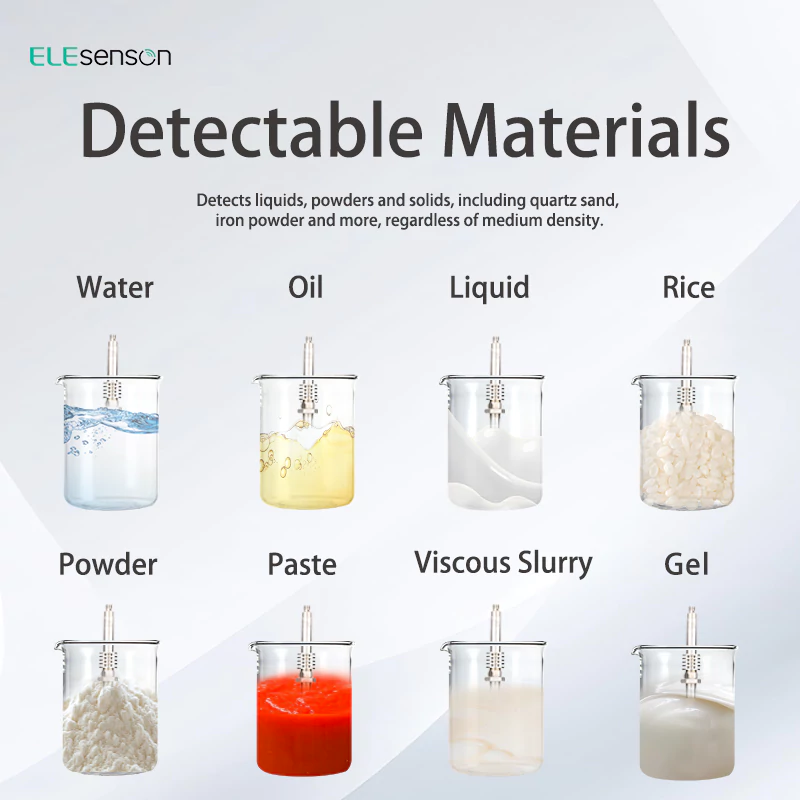

It can detect liquid, powder and solid media like quartz sand and iron powder, not affected by tank mounting position. With IP67 / IP69K protection, wide temperature range from -40℃ ~ +85℃, optional PNP/NPN output, widely used for material level monitoring in various industrial tanks and silos.
Product Features
- High measuring accuracy, reading free from tank internal installation position impact
- Excellent stability: RF admittance technology eliminates parasitic & distributed capacitance interference
- Wide application range, detects liquid, powder, solid materials regardless of medium density
- No mechanical components, wear-free long service life
- IP67 & IP69K protection grade, suitable for harsh industrial environments
- Wide working temperature: -40℃ ~ +85℃
- PNP or NPN switch output, NO+NC contact, short-circuit & reverse polarity protection
- Adjustable delay 0.0~10.0s, response time 0.1s
Technical Specifications
| Technical Parameters | |
|---|---|
| Item | Specifications |
| Operating Voltage | 12V…30VDC |
| Reverse Polarity Protection | Yes |
| Current Consumption | Typical 25mA, Max 50mA |
| Start-up Time | <2s |
| Output Logic | PNP or NPN |
| Load Current | 20mA MAX. |
| Short Circuit Protection | Yes |
| Voltage Drop | PNP : (+Vs-1.5V)±0.5V, Rload=10KΩ NPN : (+1.5V)±0.5V, Rload=10KΩ |
| Leakage Current | ±100 μA MAX. |
| Switch Status | Normally Open + Normally Closed NO+NC |
| Repeat Accuracy | ±1mm |
| Hysteresis | ±1mm |
| Response Time | 0.1s |
| Delay Time | 0.0…10.0s (Adjustable) |
| Ambient Temperature | -40…+85℃ |
| Air Humidity | <98%RH, Condensation allowed |
| Storage Temperature | -40…+85℃ |
| Protection Class | IP67, IP69K (with suitable cable) |
| Vibration (Sine Wave) | 1.6mm P-P(2…25Hz), 4g(25…100Hz), 1 Octave/min |
