Description

Product Introduction

As a key component in precision control systems, encoders convert physical displacement into electrical signals to deliver real‑time and accurate feedback.
Incremental encoders are particularly suitable for dynamic measurements such as speed and direction control;
while absolute encoders are better suited for applications requiring precise position feedback.

Product Features

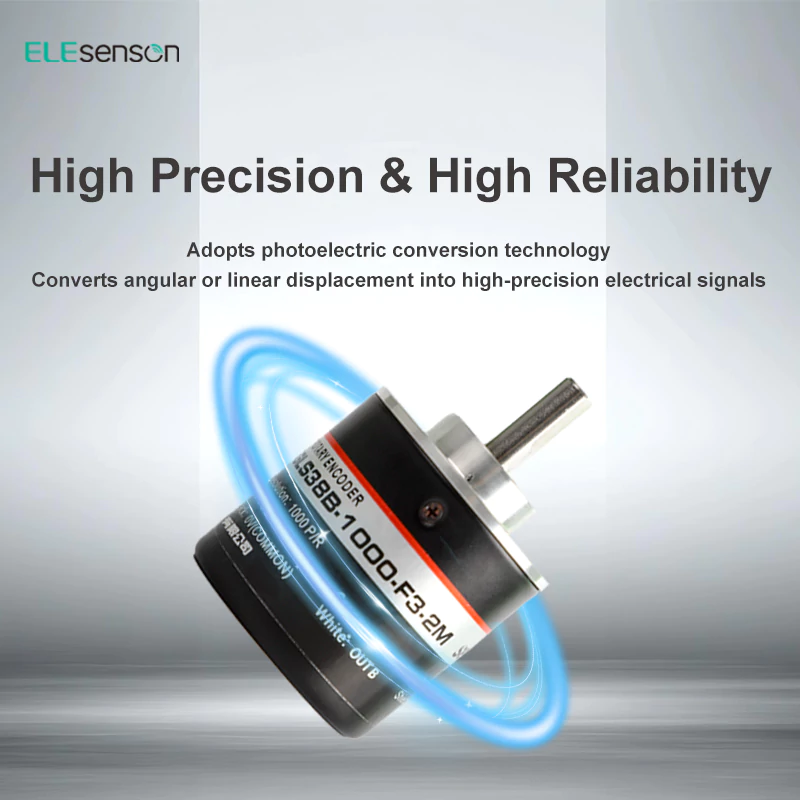

High Precision & High Reliability

Adopts photoelectric conversion technology to convert angular or linear displacement into high‑precision electrical signals.

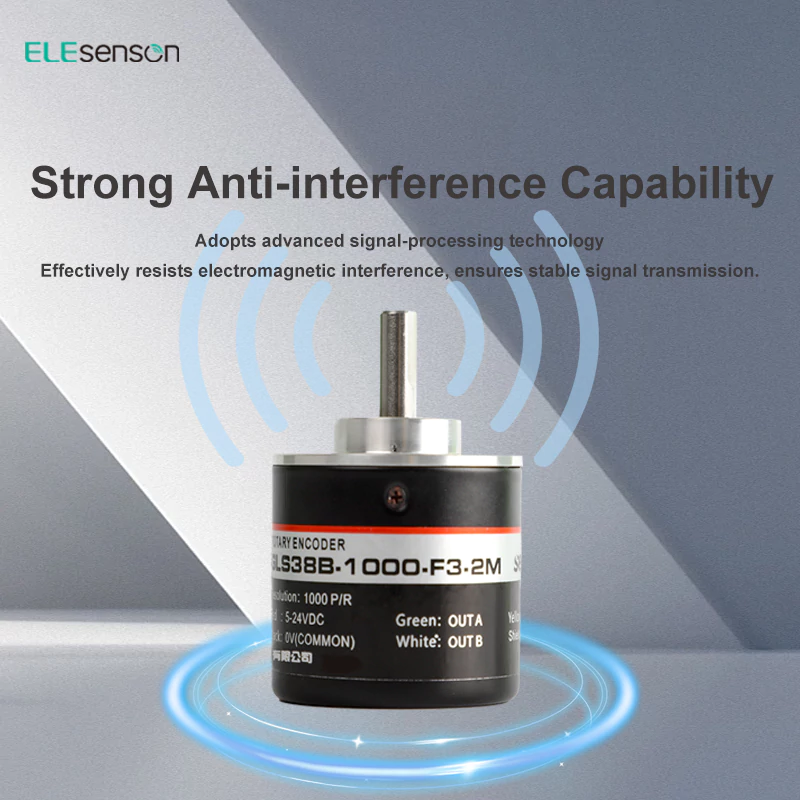

Strong Anti‑interference Capability

Equipped with advanced signal‑processing technology, effectively resists electromagnetic interference and ensures stable signal transmission.

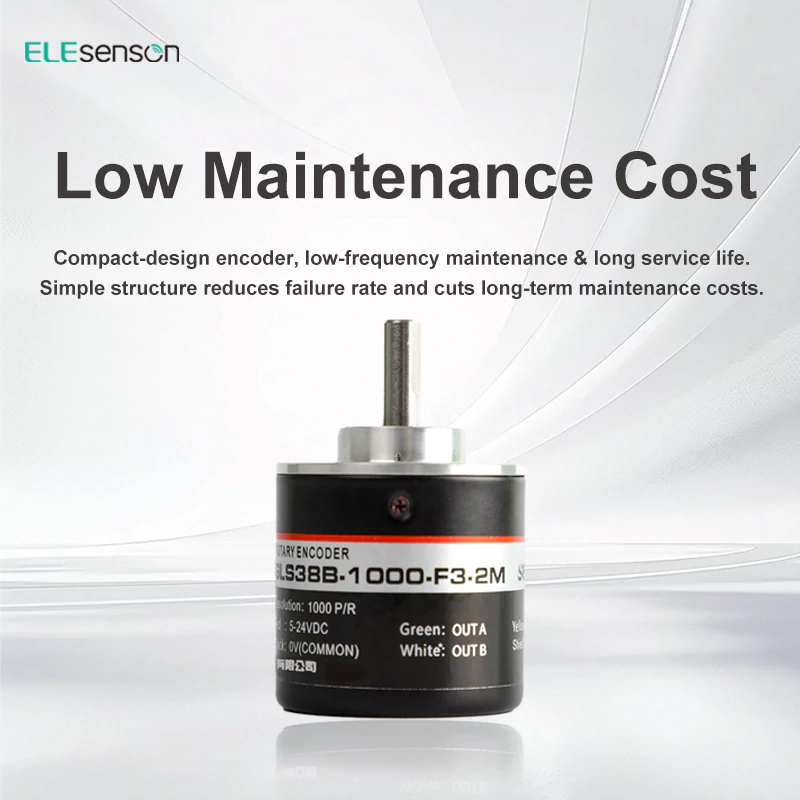

Low‑maintenance & Long Service Life

Compact structure, low failure rate, reduces later‑stage maintenance workload.

Two Types for Various Application Scenarios

‑ Incremental encoders: ideal for dynamic measurement, speed and direction control

‑ Absolute encoders: fit for applications requiring precise position feedback

Real‑time & Accurate Feedback

Key component for precision control systems, converts physical displacement into electrical signals to output real‑time position data.

Excellent Environmental Adaptability

Works reliably under diverse complex industrial working conditions.

Product Specifications

Technical Specifications

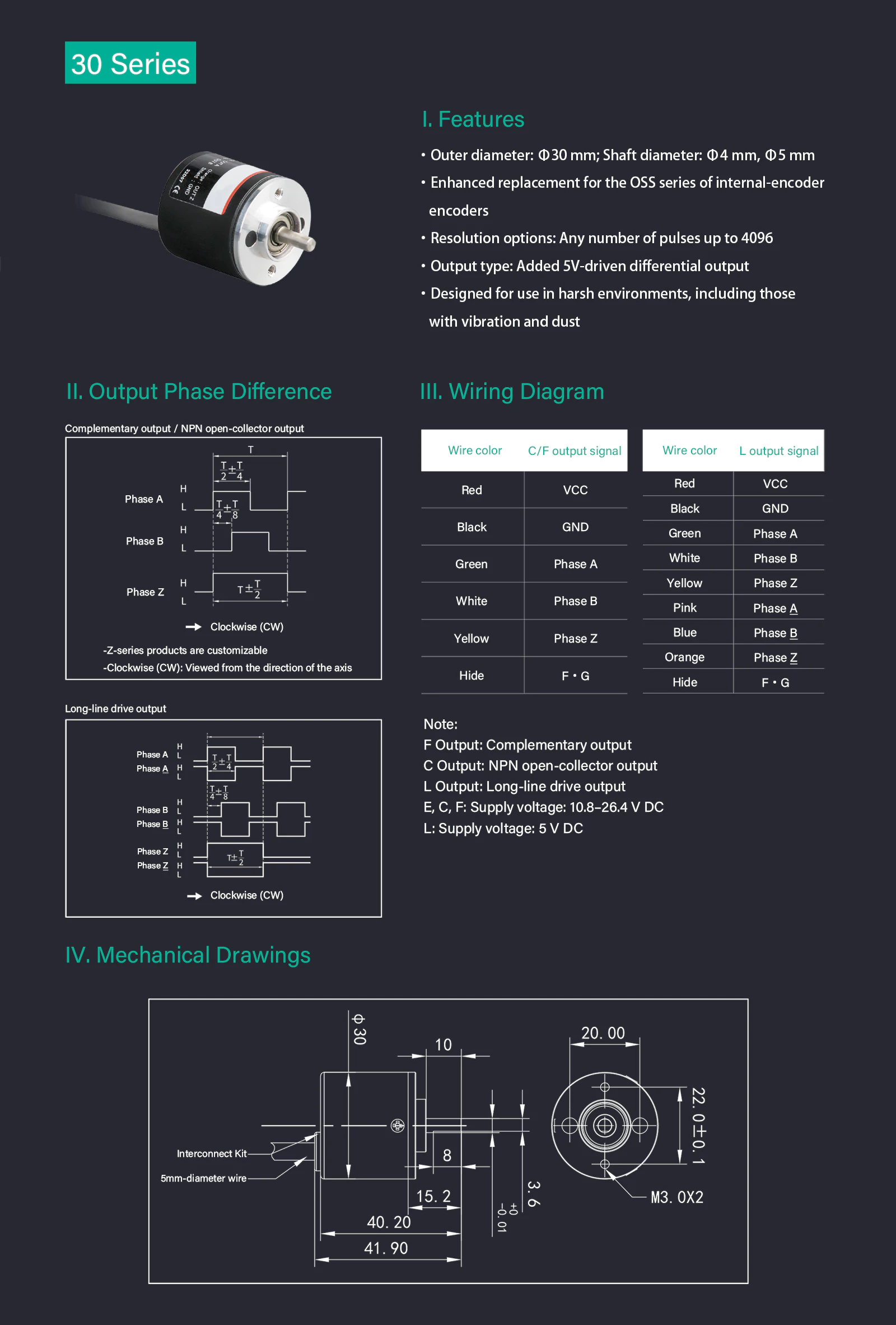

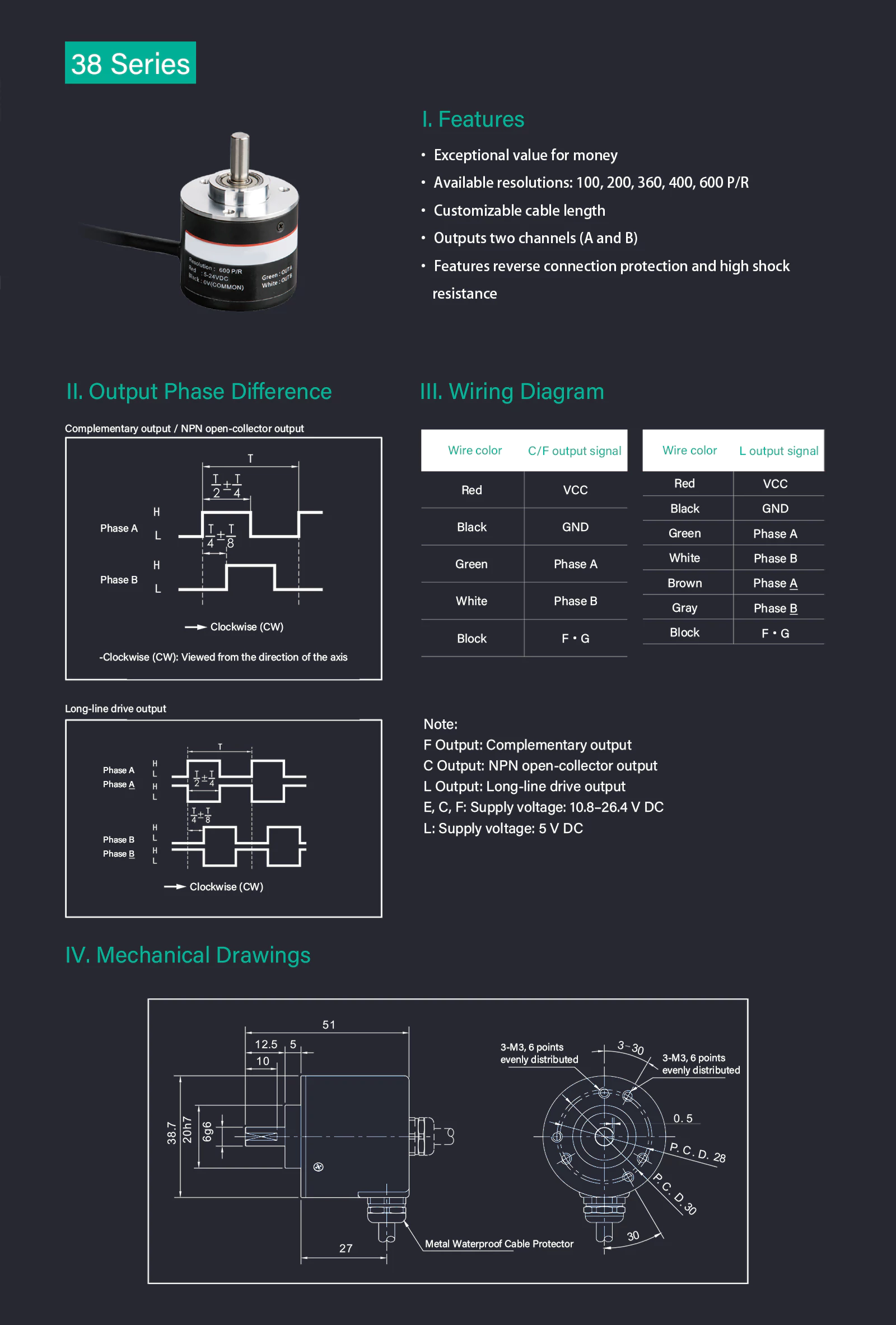

Item	Series 25	Series 30	Series 38
Product Series	Series 25	Series 30	Series 38
Outer Diameter	25mm	30mm	38mm
Shaft Bore Size	4mm	4mm(default), 5mm	6mm
Optional Pulse Resolution	1~4096	1~4096	100,200,360,400,600
Output Type
C: Open Collector	✓	✓	✓
F: Complementary Output	✓	✓	✓
T: Push‑pull Output	—	—	—
L: 5V Driver Output	✓	✓	✓
A: 24V Driver Output	—	—	—
