Description
Product Introduction

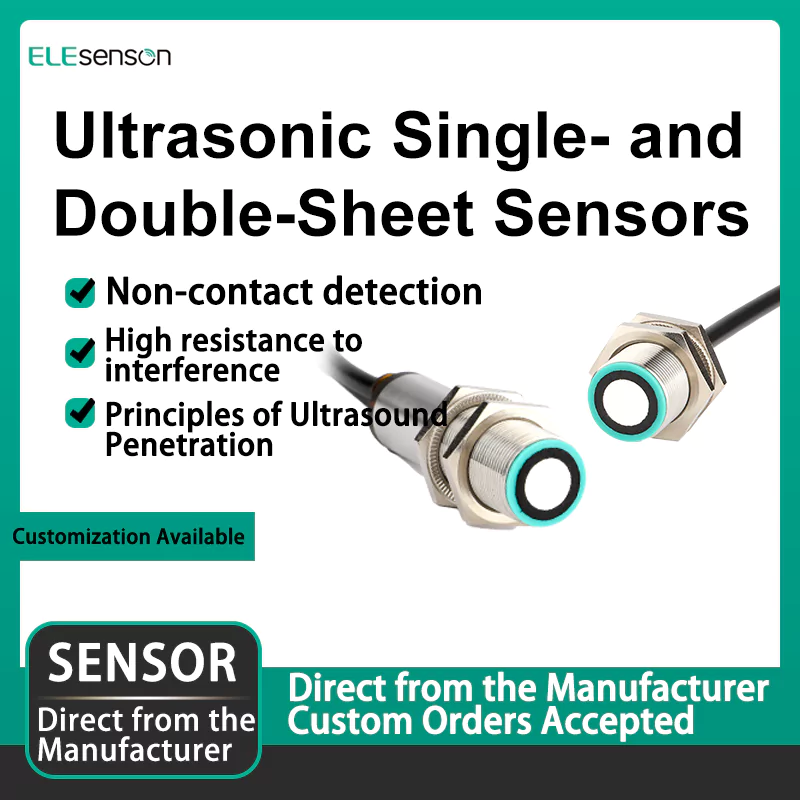

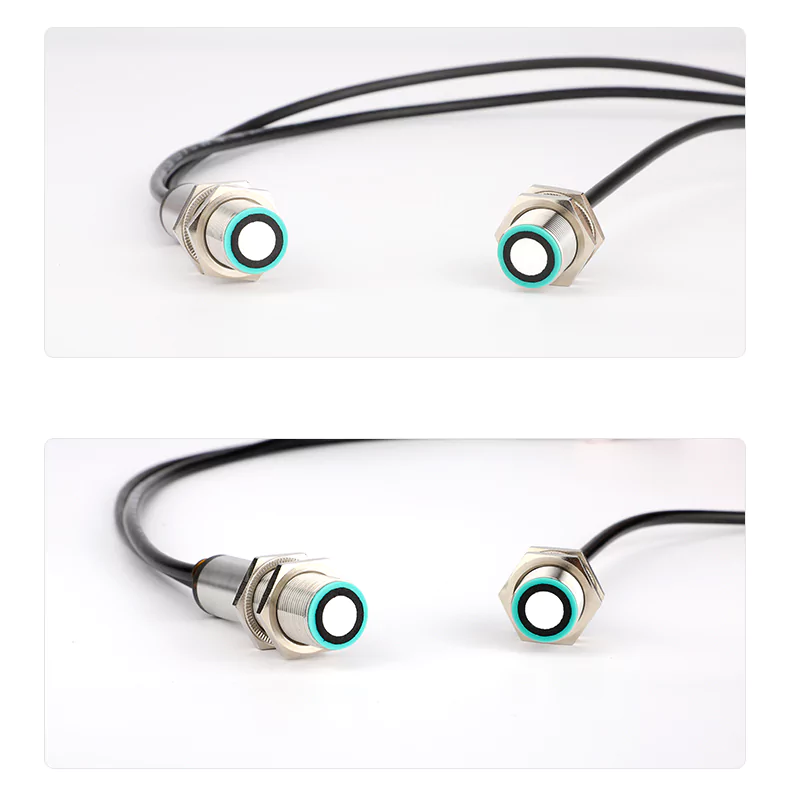

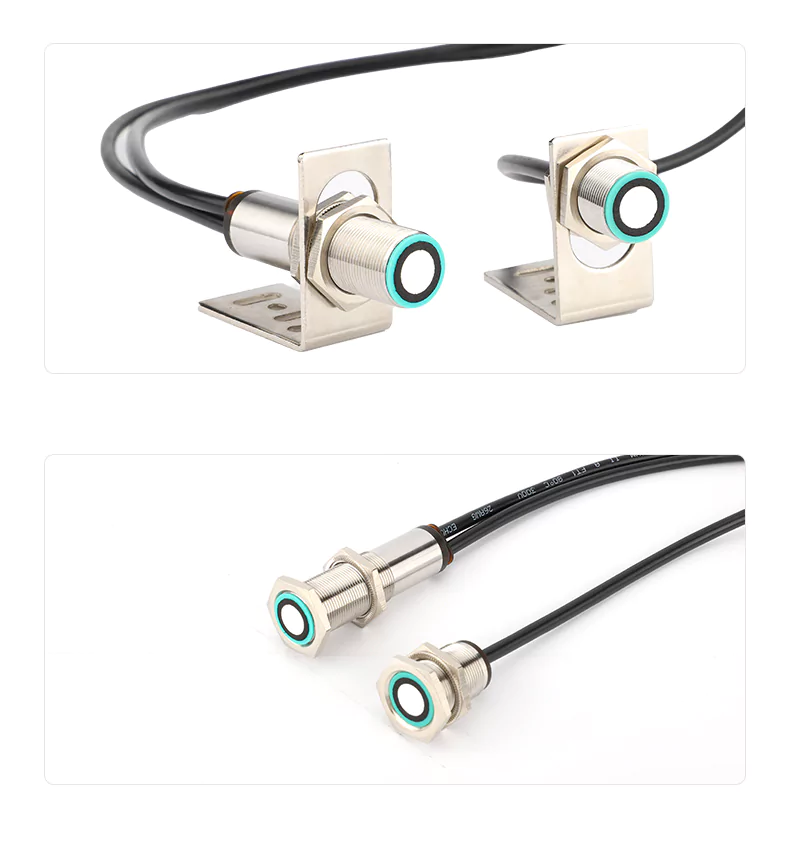

This ultrasonic single & double sheet detection sensor uses through‑beam ultrasonic technology to distinguish no‑sheet, single sheet and double sheet materials.
With built‑in anti‑interference chip and optional Teach‑in function, it supports reliable detection for paper, film, metal foil and complex targets including water‑covered bonded solar silicon wafers. Nickel‑plated brass housing ensures stable performance in industrial automation.
Product Specifications
For more detailed specifications, please contact us by email.
| Technical Specifications | ||
| Item | EdbK+4 Series | EdbK+5 Series |
| General Information | ||

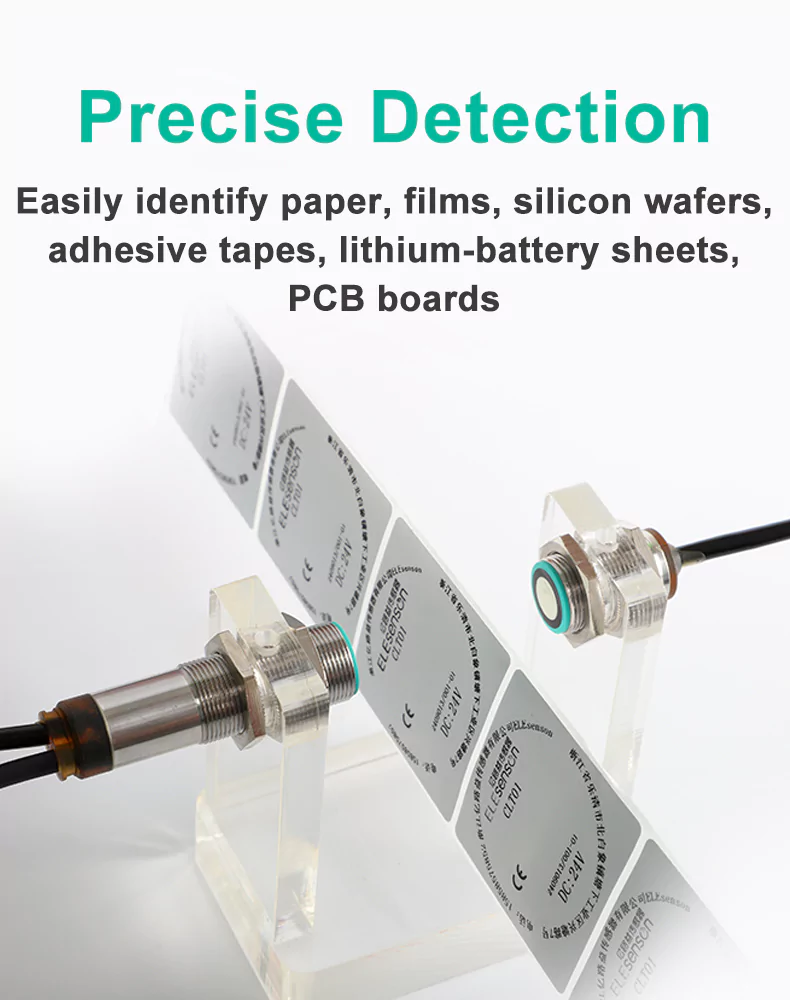

| Testing Scope | Paper with a basis weight of 20–2,000 g/m², alloy laminates, and films up to 0.4 mm thick; self-adhesive films; metal foils up to 0.3 mm thick; corrugated cardboard; wafers; and PCB circuit boards. | Plastic sheets with a weight per unit area of 100–2000 g/m², alloy laminates, and films up to 5 mm thick; self-adhesive films; metal foils up to 2 mm thick; corrugated cardboard; wafers; and PCB circuit boards. |
| Design | Cylindrical M18 | |
| Indicator Light Specifications | 2 LEDs; Green light: Operating, Double feed; Red light flashing: Paper out | |
| Ultrasonic Sensor Characteristics | ||
| Measurement Method | Pulse operation with amplitude estimation | |
| Transducer frequency | 200 kHz | 400 kHz |
| Blind spot | 7 mm in front of the transmitter and receiver | |
| Electrical Specifications | ||
| Operating voltage | 18–30 V DC, reverse polarity protection | 20–30 V DC, reverse polarity protection |
| Voltage ripple | ± 10 % | |
| No-load current loss | ≤ 50 mA | |
| Connection Type | 1 m PUR cable, 7 × 0.25 mm² | 2 m PUR cable, 7 × 0.14 mm² |
| Output | ||
| Output 1 | Dual NPN/PNP outputs: Iₘₐₓ = 200 mA (U₈-2V) Normally open/normally closed, adjustable, short-circuit protection | |
| Output 2 | One NPN/PNP output missing: Iₘₐₓ = 200 mA (-U₈-2V) Normally open/normally closed, adjustable, short-circuit protection | |
| Response time | Trigger mode <500 μs; automatic operation mode: 2.5 ms | |
| Input | ||
| Description | < -U₈+6V: Logic 1; > -U₈+10V or control input open: Logic 0 | |
| Enter 1 | Control Input | |
| Enter 2 | Control Input | |
| Enter 3 | Control Input | |
| Housing | ||
| Transmitter-Receiver Distance | 20–60 mm; optimal: 40 mm ± 3 mm | |
| Permissible angular deviation | ±45° from the vertical plane | |
| Materials | Brass sleeve, nickel-plated; plastic parts: PBT, PA Ultrasonic transducer: polyurethane foam, glass-filled epoxy resin | |
| Maximum tightening torque for nuts | 15 Nm | |
| Protection rating EN 60529 | IP 65 | |
| Operating temperature | Between +5°C and +60°C | |
| Storage Temperature | -40°C to +85°C | |
| Weight | 160 g | |
Product Features
1.Through‑beam ultrasonic detection for no‑sheet / single‑sheet / double‑sheet identification

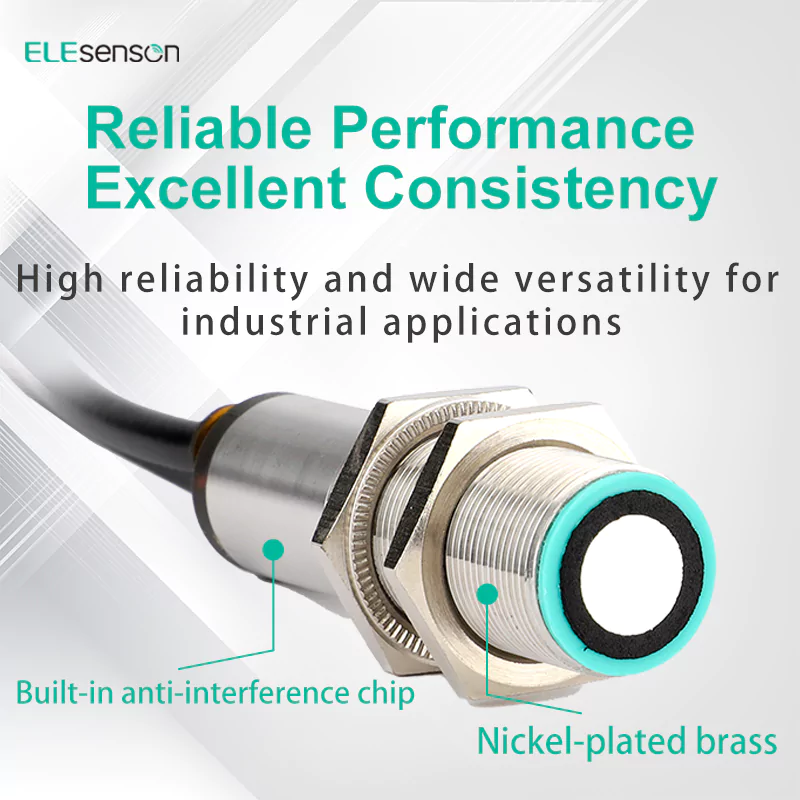

2.High reliability and broad versatility for industrial applications
3.Built‑in anti‑interference chip

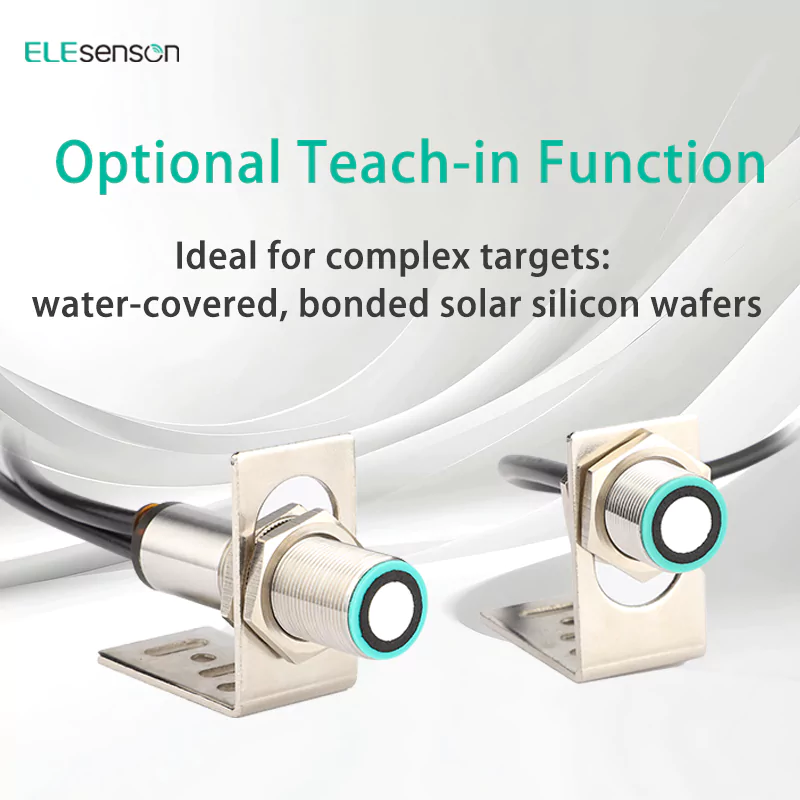

4.Optional Teach‑in function for fast calibration
5.Ideal for complex targets: water‑covered, bonded solar silicon wafers
6.Nickel‑plated brass housing, IP67 protection
