Description
Product Brief

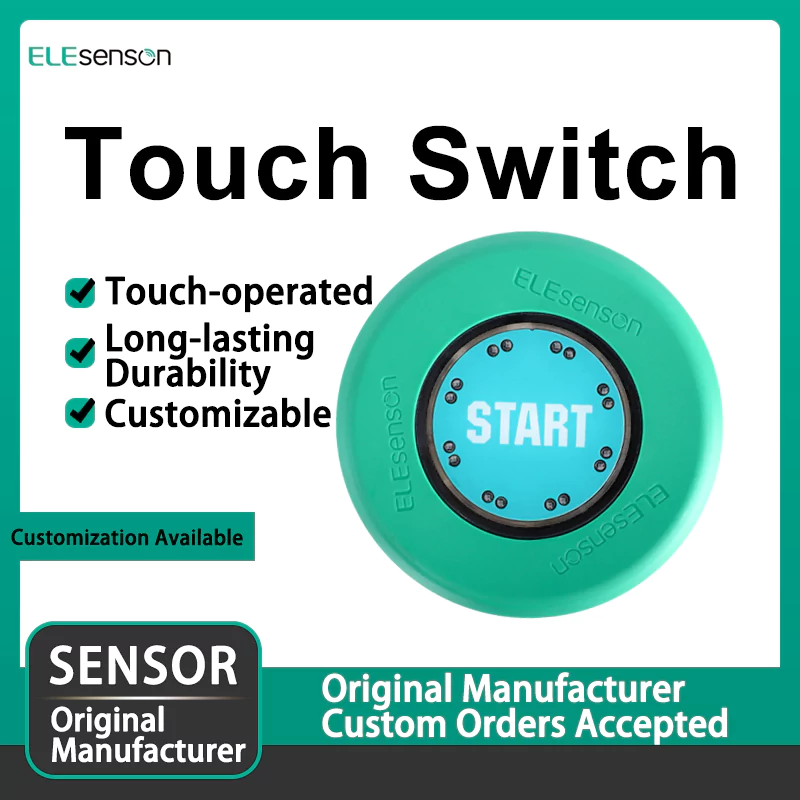

ELEsenson CLT series touch switches adopt capacitive‑sensing design for easy operation and outstanding durability with ultra‑long service life. Robust construction plus full IP69K‑grade water‑and‑oil‑proof performance enables reliable operation under extremely harsh working conditions and severe weather environments.
The CLT series offers broad options for model types, materials, connection styles, accessories and mounting depths to meet diverse specification requirements. It covers nearly all industry sectors. Special hygienic‑compliant versions feature stainless‑steel and tempered‑glass housings, ideal for medical‑healthcare, food and beverage applications.
Key Features
- Touch‑operated
Easy operation, no physical pressure required.
- Long‑lasting Durability
Switch cycle rating up to hundreds of millions.
- Diversified Options
Covers contact‑surface dimensions, housing materials and appearance design.
- IP69K Water‑proof & Oil‑proof Rating
Integrated‑molding design built with advanced technology and premium‑grade materials.

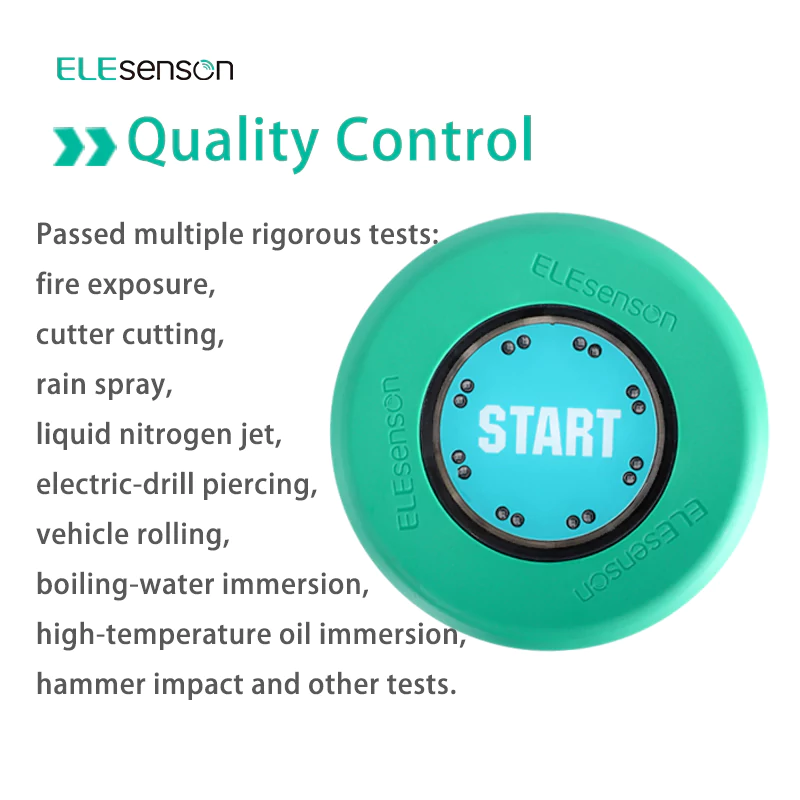

- Impact & Damage Resistance
Effectively withstands damage caused by flame and impact shocks.
- Multiple Feedback Modes
Including LED illumination (16‑LED array), audible signal tone and tactile vibration feedback.

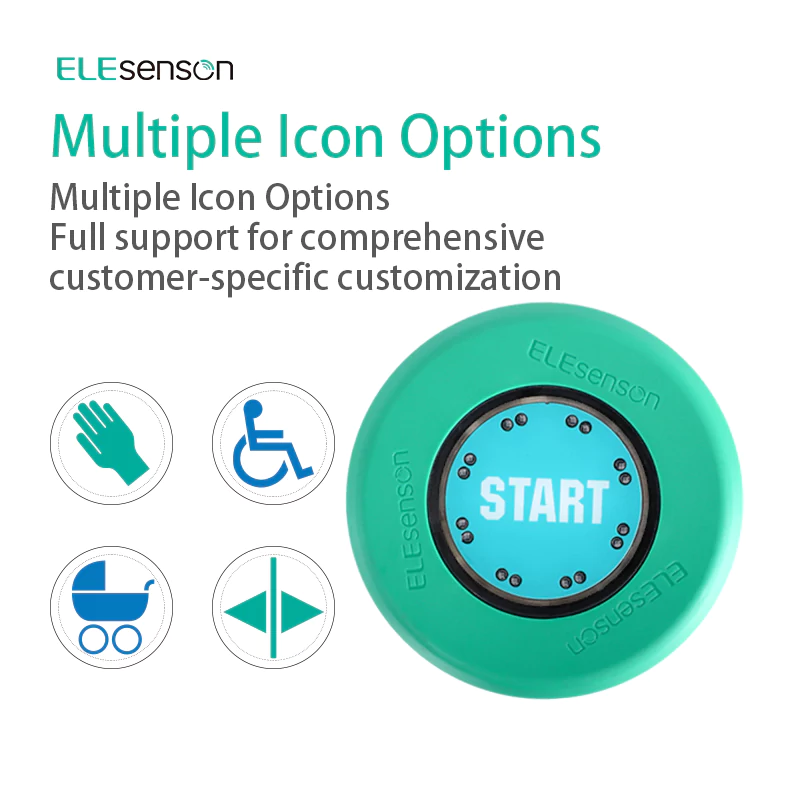

- Customization Service Available
Multiple graphic‑logo options are provided, supporting comprehensive customer‑specific customization.

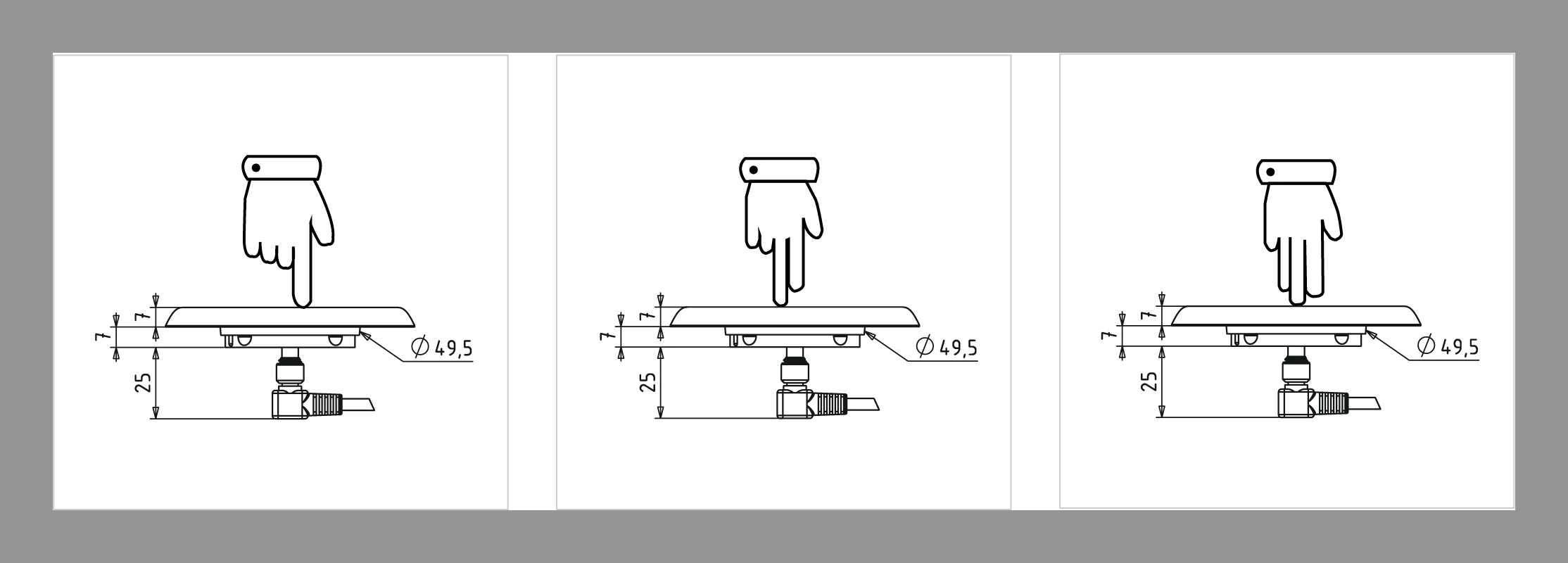

Sensitivity

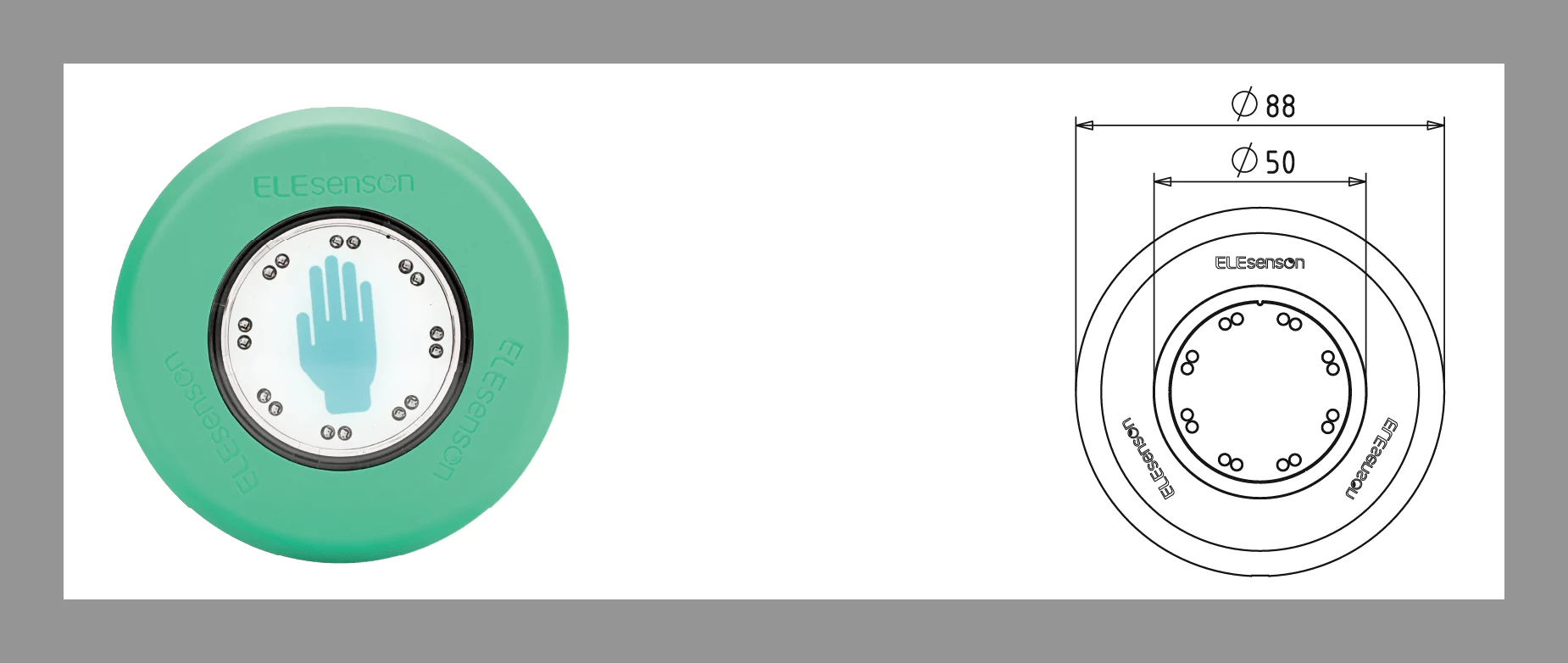

CLT01 Series

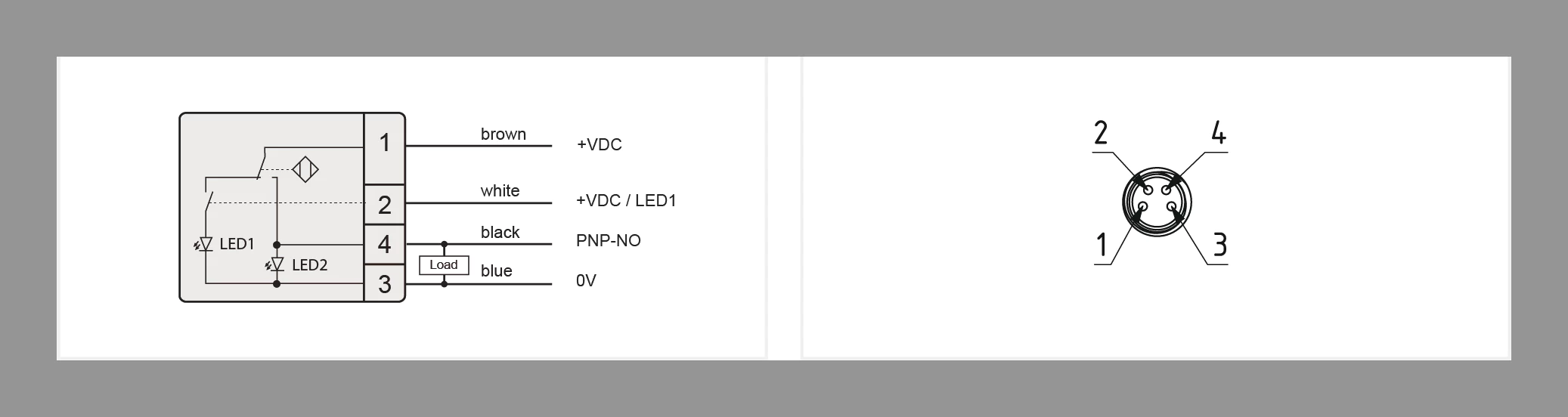

Wiring Diagram
CLT02 Series

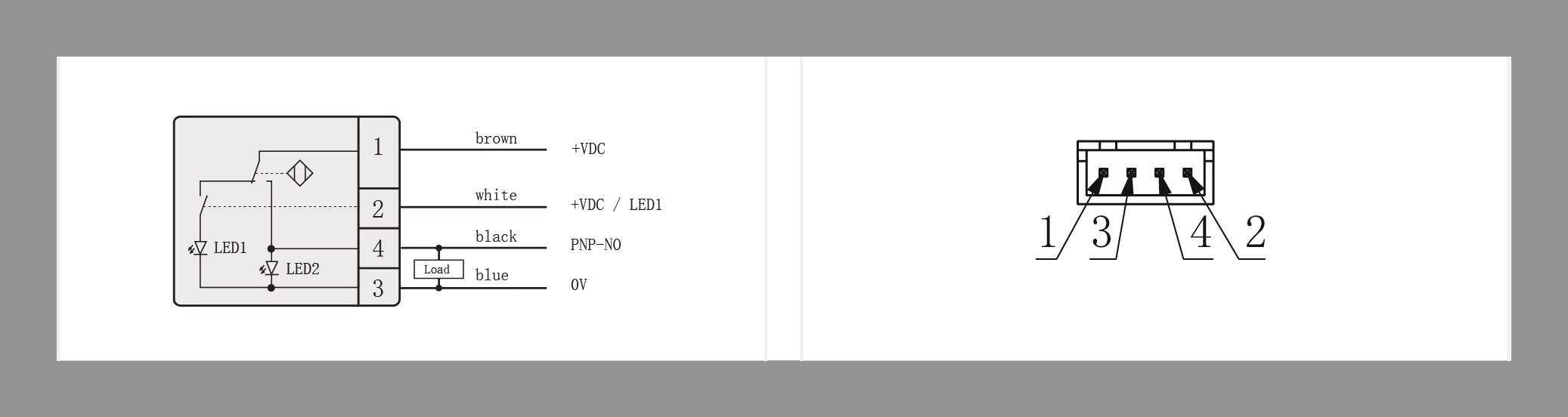

Wiring Diagram
Technical Parameters
| Item | Technical Specifications |
| Operating Voltage | DC 24 V (16.8 … 32 V) |
| Permissible Current | Max. 200 mA |
| Output | PNP‑NO |
| Output Signal | Continuous output upon triggering |
| LED 1 | 8 green LEDs |
| LED 2 | 8 red LEDs |
| Reverse‑polarity Protection | Reverse‑polarity protection for all wires |
| Short‑circuit Protection | Short‑circuit and overload‑protection function |
| Voltage Drop | Max. 2.5 V @ 200 mA |
| Current Consumption | Max. 30 mA @ 24 V |
| Operating Temperature | ‑30 … +80 °C |
| Protection Rating | IP69K (operating area) |
| Operation Method | Capacitive |
| Operating Pressure | No pressure required |
| Sensitivity | Customizable |
| Brightness | Customizable |
| Graphic | Customizable |
Application Cases

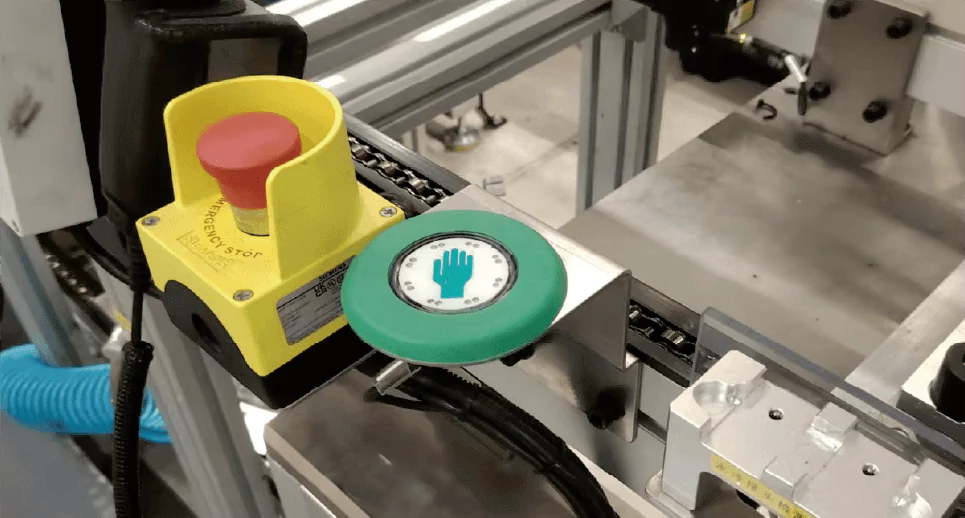

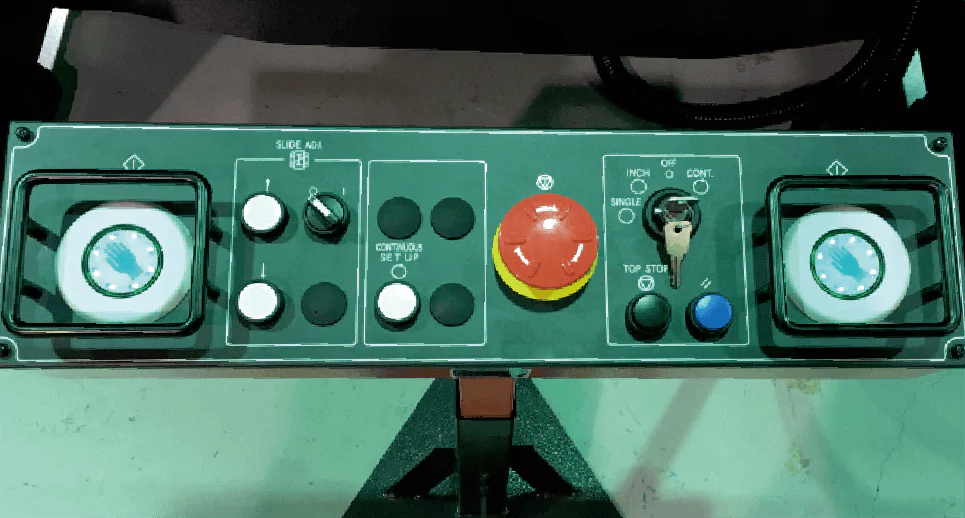

Touch‑switch applications on industrial equipment

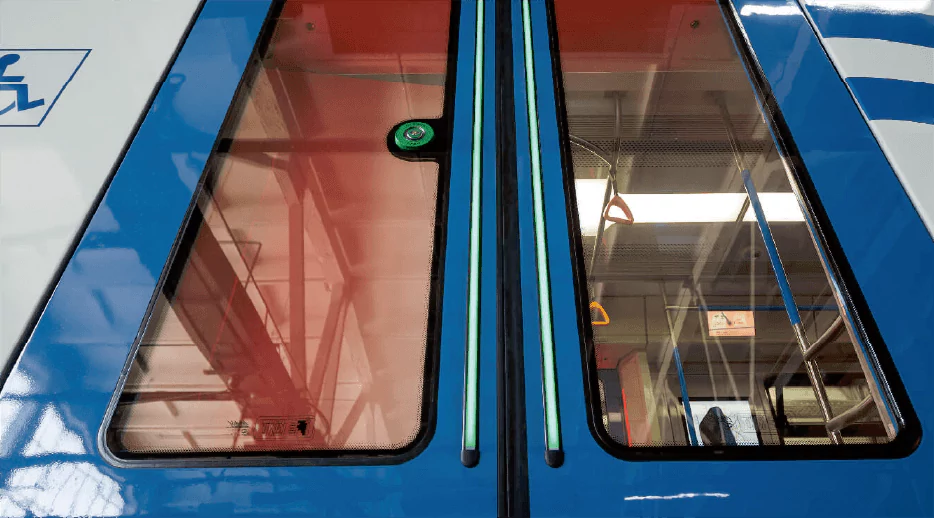

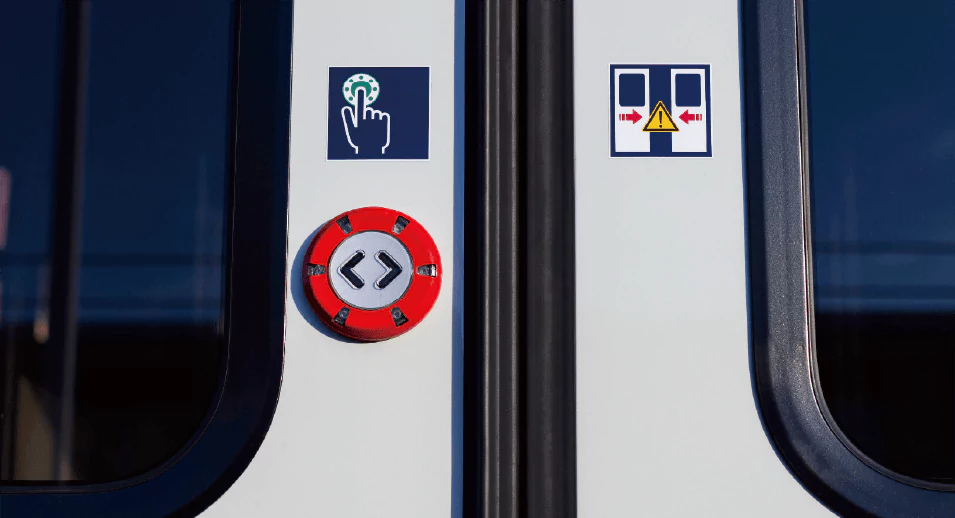

Touch‑switch applications on high‑speed trains
V. Custom Designs
