Product Introduction

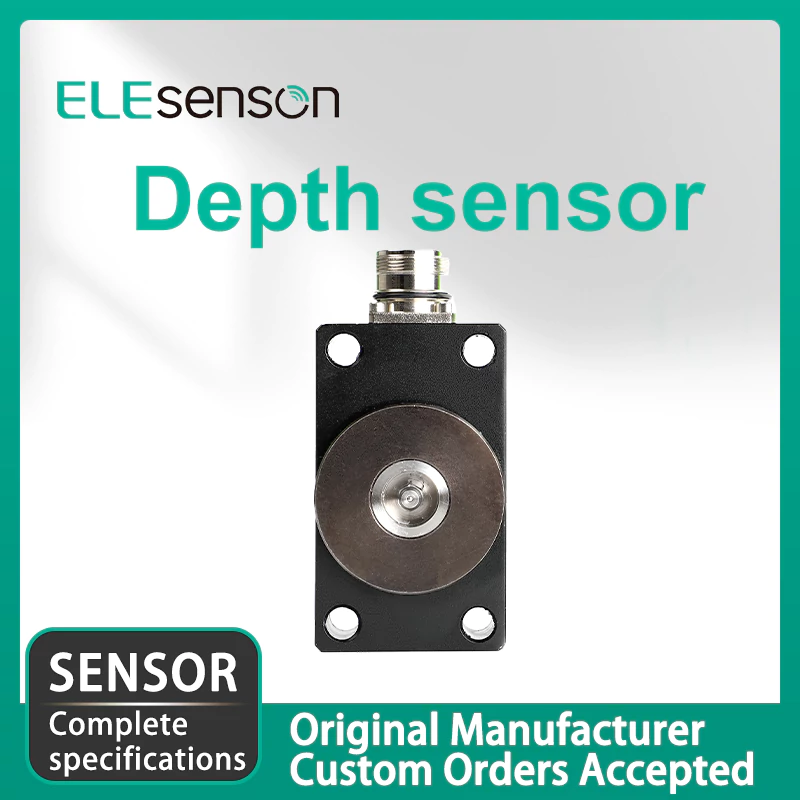

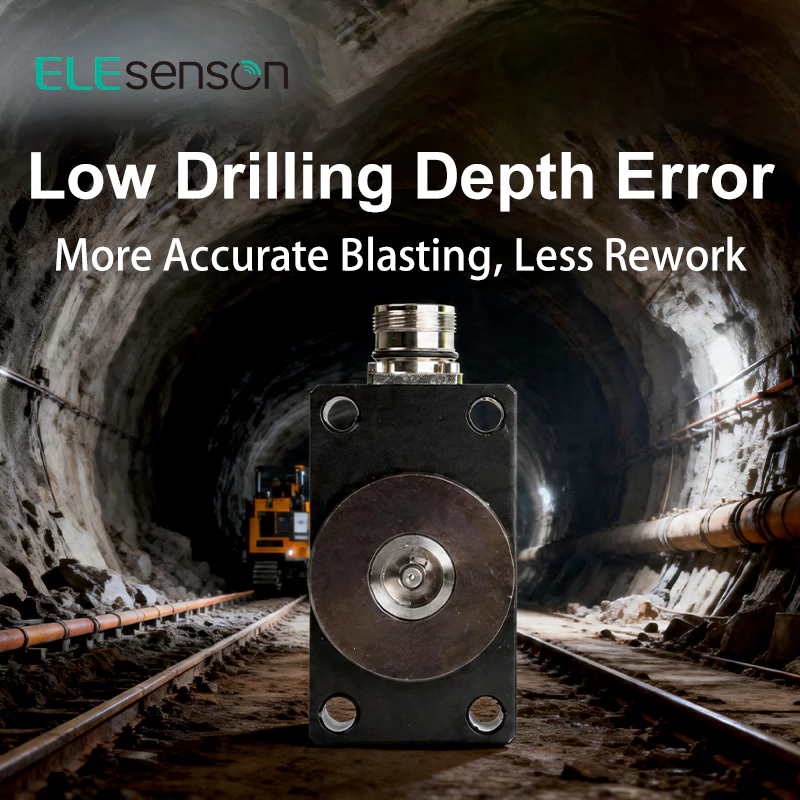

This rock drill depth sensor is aftermarket replacement spare part compatible with Epiroc rock‑drilling equipment. It delivers high‑precision drilling depth measurement for tunnel excavation, underground and open‑pit mining. Anti‑vibration design ensures stable detection under harsh heavy‑duty conditions, supporting automatic stop at preset depth for automated drilling systems. Not original OEM product, no affiliation with Epiroc.
Product Features
• Dedicated depth sensor for rock drill mining & tunneling machinery

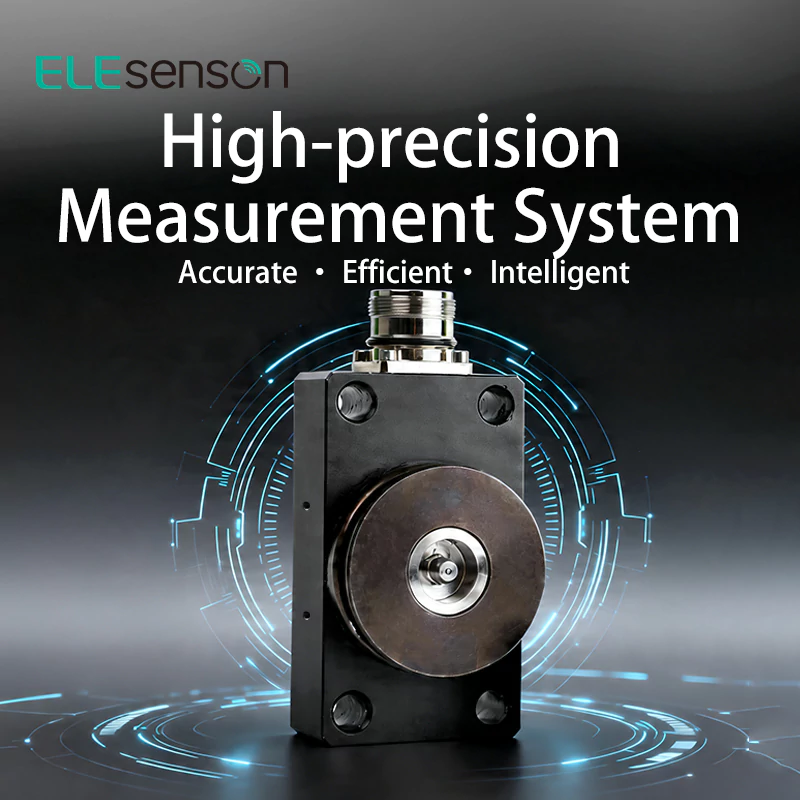

• High‑precision depth measurement for drilling hole positioning
• Excellent anti‑vibration performance, stable detection under strong vibration working conditions
• Supports preset‑depth automatic stop for automated rock drilling systems
• Widely applicable for tunnel excavation, underground mine, open‑pit mine, anchor cable hole and pipe‑shed hole construction

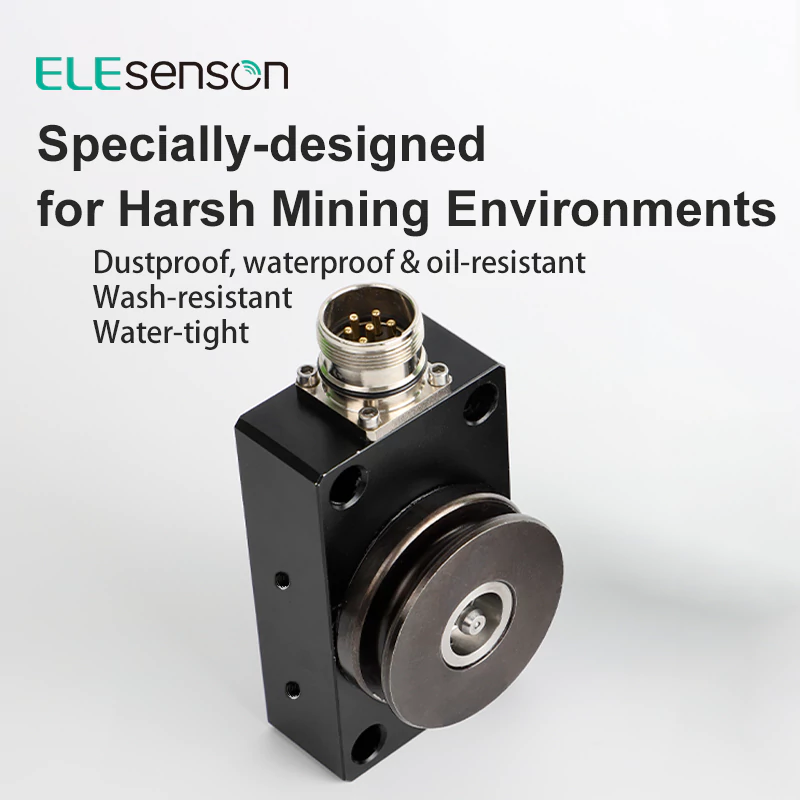

• Rugged heavy‑duty housing, adapts to complex and harsh mining site environments
• Aftermarket replacement part compatible with Epiroc rock drill series
• Compact structure, easy installation for equipment maintenance & retrofitting
Product Specifications
| Technical Parameters | ||
|---|---|---|
| Category | Item | Description |
| Measuring Performance | ||
| Measuring Performance | Range:200~13000mm | Covers short‑stroke to long‑stroke feed requirements |
| Linearity: ≤±0.1%FS | Supports high‑precision control for automatic drilling | |
| Resolution:0.1~5mm | Max 0.001mm/pulse for digital type | |
| Repeatability:±0.05~0.5mm | Guarantees long‑term measuring stability | |
| Electrical Parameters | ||
| Electrical Parameters | Power Supply:12~24VDC | Compatible with vehicle on‑board power supply |
| Output Signal | Incremental ABZ pulse, Absolute SSI/CANopen, Analog 4‑20mA/0‑10V | |
| Connector & Protection | Special waterproof M12 8‑pin connector, IP67 | |
| Environmental Adaptability | ||
| Environmental Adaptability | Operating Temp.:‑40℃~+85℃ | Wide temperature range for underground & open‑air harsh conditions |
| Vibration / Shock Resistance | 10~2000Hz / 100g (6ms) | |
| Mechanical Characteristics | ||
| Mechanical Characteristics | Material | Stainless steel / Aluminum alloy housing, corrosion resistant |
| Mounting & Pull Wire | Flange / bracket mounting; stainless steel cable, wear resistant | |

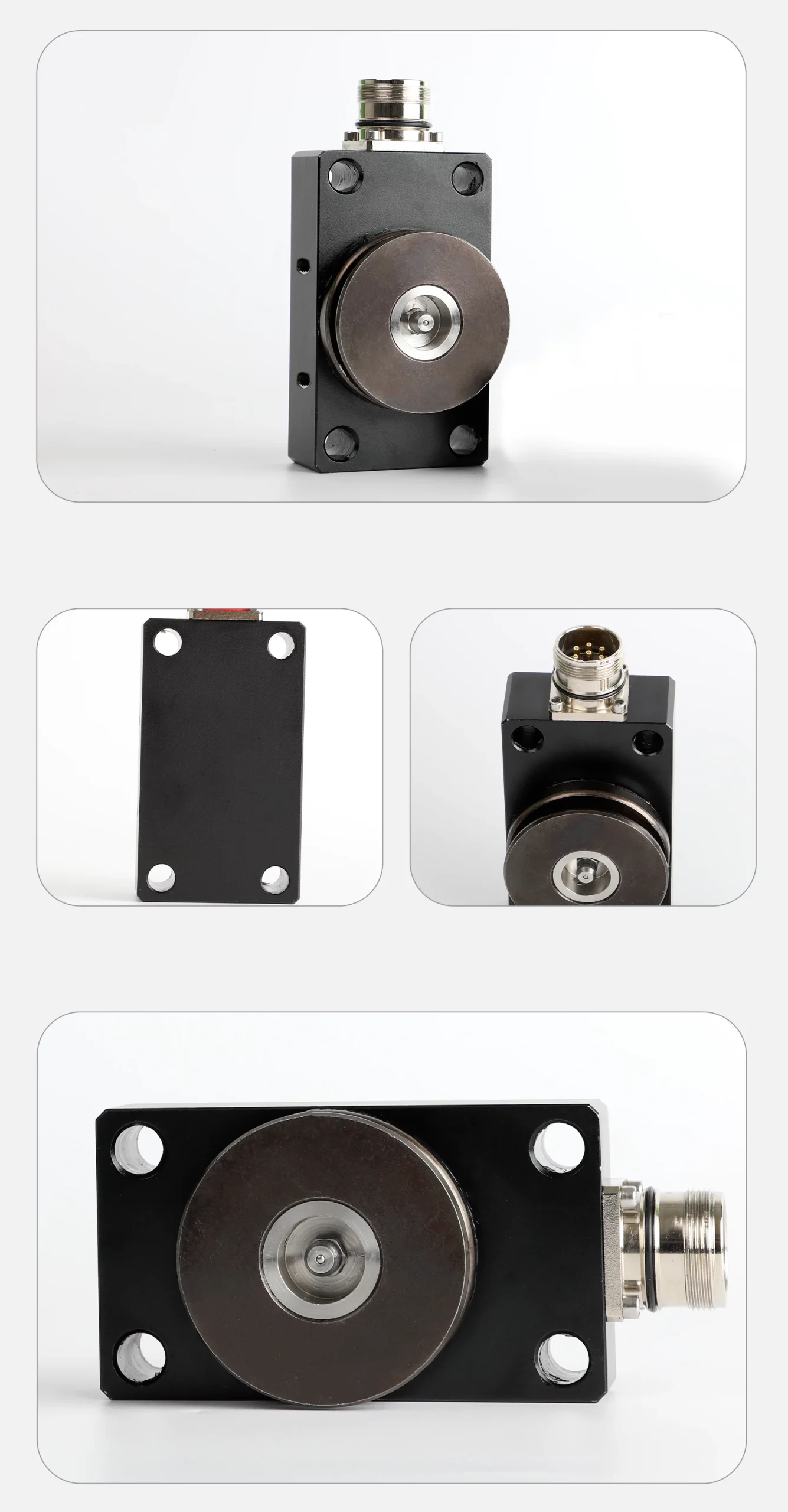

Product Details
