Description
Product Introduction

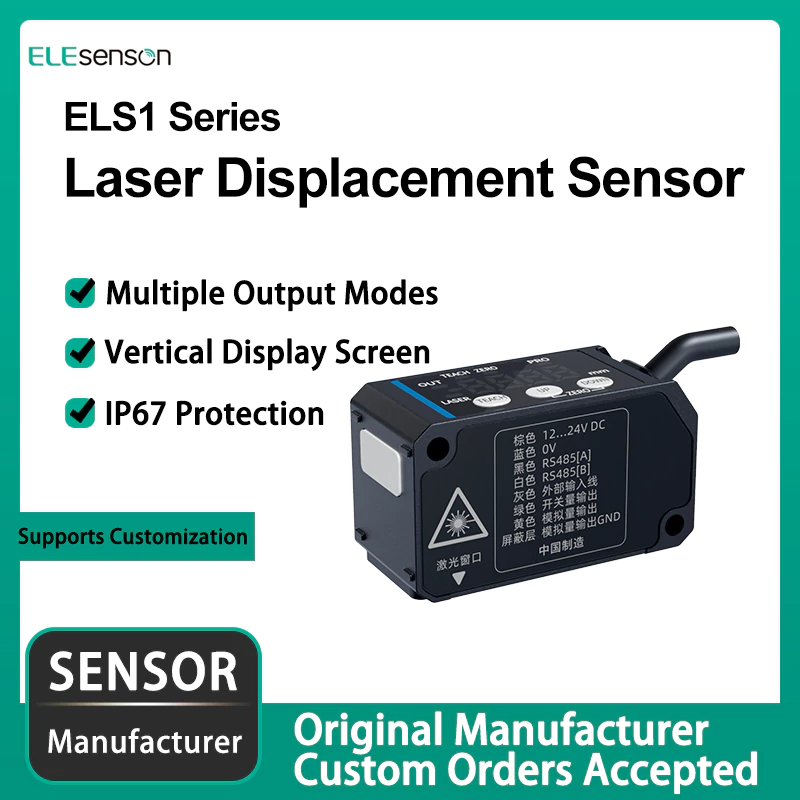

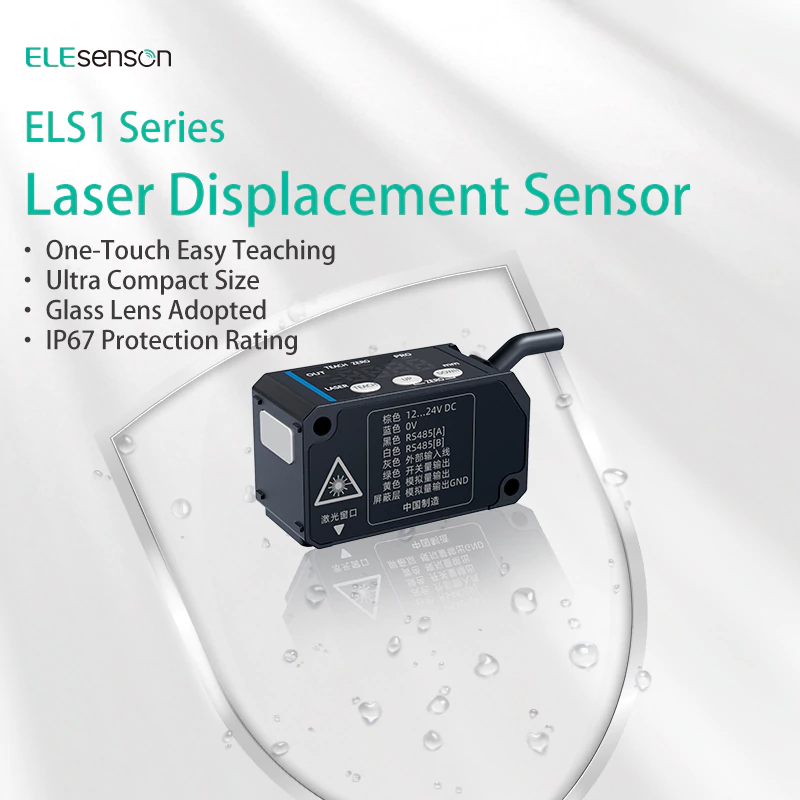

ELS1 Series Laser Displacement Sensors are cost-effective high-precision measuring devices. Featuring a compact form factor, they fit diverse mounting scenarios and support industrial automation applications including height guidance, thickness and height measurement, to deliver precise positioning and depth control.
Product Features
• Cost-effective & High Stability
It can withstand various harsh environments including electromagnetic interference.
• High-performance Lens

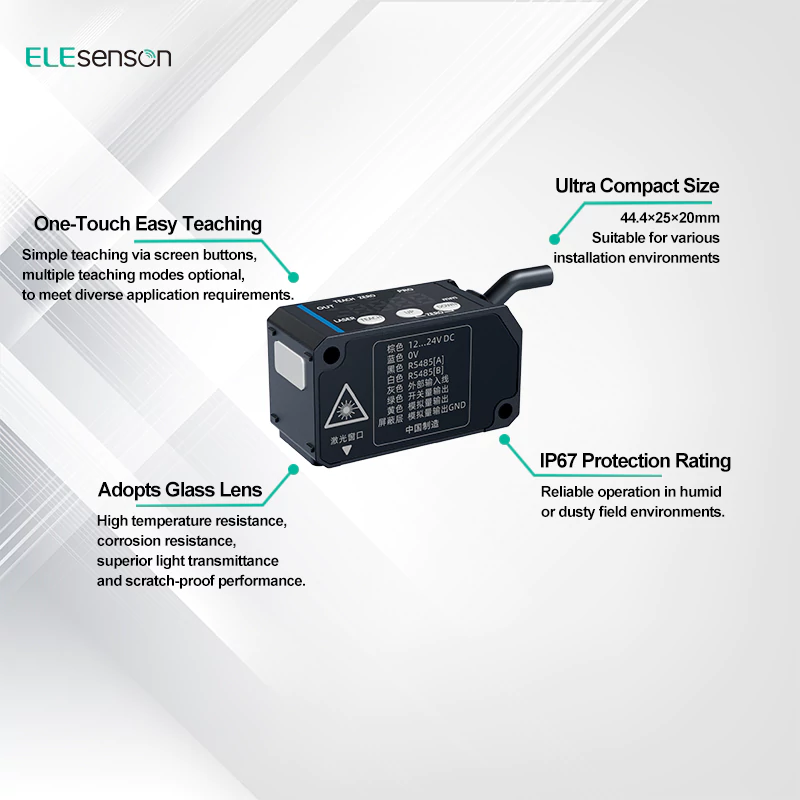

Glass lenses for both emission and receiving areas. Compared with acrylic panels, it delivers better temperature resistance, corrosion resistance, higher light transmittance and scratch resistance.
Glass lenses for both emission and receiving areas. Compared with acrylic panels, it delivers better temperature resistance, corrosion resistance, higher light transmittance and scratch resistance.
• User-friendly Interface
Equipped with 4-digit display panel and 3 keys for simple multi-function configuration.
Equipped with 4-digit display panel and 3 keys for simple multi-function configuration.
• Diverse Communication Options
Supports independent selection of RS485 serial protocol / analog current / voltage output. Compatible with EtherCAT module for flexible communication.
Supports independent selection of RS485 serial protocol / analog current / voltage output. Compatible with EtherCAT module for flexible communication.
• Large Indicator Light
Large front output indicator allows users to directly view device status during operation.
Large front output indicator allows users to directly view device status during operation.
Technical Specifications
| Technical Specifications of Laser Displacement Sensor | ||||||
|---|---|---|---|---|---|---|
| Item / Model | ELS1030-○ | ELS1050-○ | ELS1100-○ | ELS1200-○ | ELS1400-○ | |
| Reference Distance (CD) | 30mm | 50mm | 100mm | 200mm | 400mm | |
| Measurement Range | ±5mm | ±15mm | ±35mm | ±80mm | ±200mm | |
| Light Source | Laser Wavelength | Laser Wavelength | 655nm | |||
| Laser Class | Laser Class | Class 2 | ||||
| Laser Output Power | Laser Output Power | 1mW | ||||
| Spot Diameter | Reference Distance | Φ50μm | Φ70μm | Φ120μm | Φ300μm | Φ500μm |
| Repeatability | 5μm | 15μm | 35μm | 100μm | 150μm(200~400mm) 400μm(400~600mm) |
|
| Linearity | ±0.1% F.S. | ±0.2% F.S. | ±0.2% F.S.(200~400mm) ±0.3% F.S.(400~600mm) |
|||
| Temperature Characteristic | ±0.05% F.S./℃ | |||||
| Sampling Frequency (Hz) | 100/200/1000Hz (3 selectable levels) | |||||
| Input & Output | Communication Port | 1 × RS485 (Supports Modbus RTU) | ||||
| Analog Output | 1-channel analog output, analog voltage(0~5V) or analog current(4~20mA). Voltage & current cannot be switched. | |||||
| IO Input | 1 channel, supports laser shutdown, teaching, trigger, zero reset and other functions | |||||
| IO Output | 1 channel, judgment status output | |||||
| Power Supply Voltage | DC12~24V ±10% | |||||
| Current Consumption | ≤40mA @ DC24V, ≤60mA @ DC12V | |||||
| Operating Temperature | -10~50℃ | |||||
| Storage Temperature | -20~60℃ | |||||
| Operating Humidity | 35%~85% RH, non-condensing, no frost | |||||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, complies with IEC61000-4-2 | |||||
| EFT Protection | Power port 2kV/5 or 100kHz; Signal port 1kV/5 or 100kHz, complies with IEC61000-4-4 | |||||
| Shock | 500m/s² (approx.50G), 3 times each on X,Y,Z axes | |||||
| Vibration | 10~55Hz, double amplitude 1.5mm, 2 hours each on X,Y,Z axes | |||||
| IP Rating | IP67, complies with IEC60529 | |||||

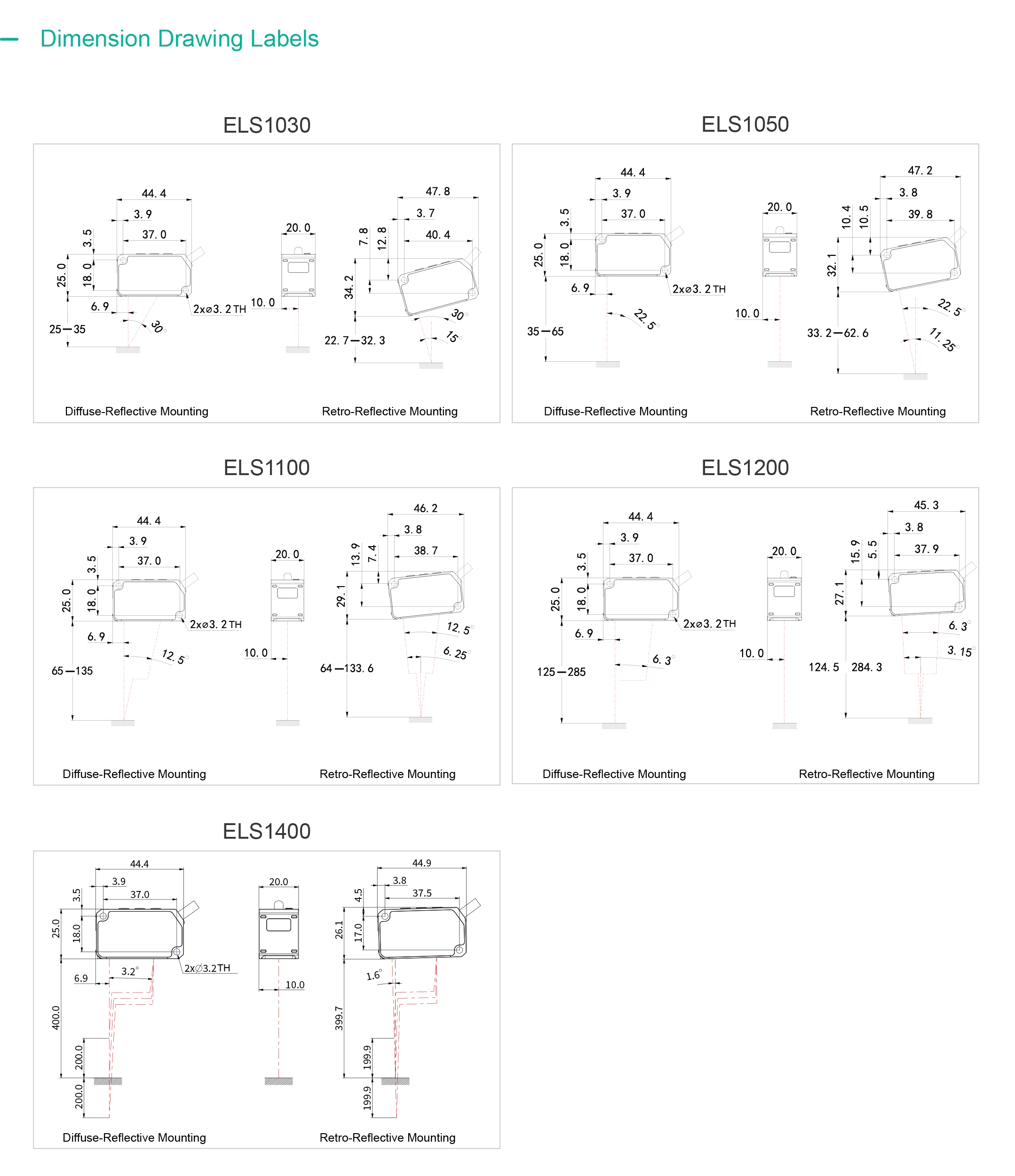

| Dimension (mm) | 37*25*20 | |||||
| Weight (including cable)(g) | 86 | |||||
