Product Introduction
This industrial laser distance sensor is a high-precision non-contact measuring device designed for industrial automation applications. It supports a maximum measuring distance of 22 meters and performs stably even under strong sunlight, low-reflection targets and complex field conditions. Built-in temperature compensation and reflectivity correction ensure consistent and accurate readings for objects of different colors and materials. With IP65 waterproof and dustproof rating, wide voltage input, and multiple anti-interference designs, the sensor works reliably in high/low temperature, dusty and harsh industrial environments. Equipped with NPN/PNP switch output, RS485-Modbus and 4-20mA analog output, it is widely compatible with PLC and industrial control systems, easy to install and debug for intelligent distance detection and positioning.
-
Long Measuring Range & Strong Environmental Adaptability: Max distance up to 22m; 15m under 160kLux strong light; 20m for 10% low-reflection black targets, suitable for various complex working conditions.
-
High Precision & Excellent Repeatability: Graded precision control with repeatability of ±8mm~±30mm in different ranges, supporting stable dual-target detection for industrial precise measurement.
-
Intelligent Calibration Algorithm: Supports temperature compensation and reflectance correction. Measurement deviation for different colored targets is less than 5mm, effectively avoiding data drift.
-
Industrial Grade IP65 Protection: -20℃~50℃ operating temperature and -40℃~85℃ storage temperature, dustproof and waterproof for outdoor and harsh workshop use.
-
Adjustable High Frequency Response: Measuring frequency 1~1000Hz (default 100Hz), fast response for dynamic distance measurement and high-speed assembly line detection.
-
Multi-output Compatibility: Integrated NPN/PNP digital output, RS485-Modbus and 4-20mA analog output, fully compatible with mainstream industrial PLC systems.
-
Safe & Durable Performance: Adopts 905nm Class 1 safe laser, with reverse connection protection and isolation circuit. Service life over 50000 hours for long-term industrial operation.
-

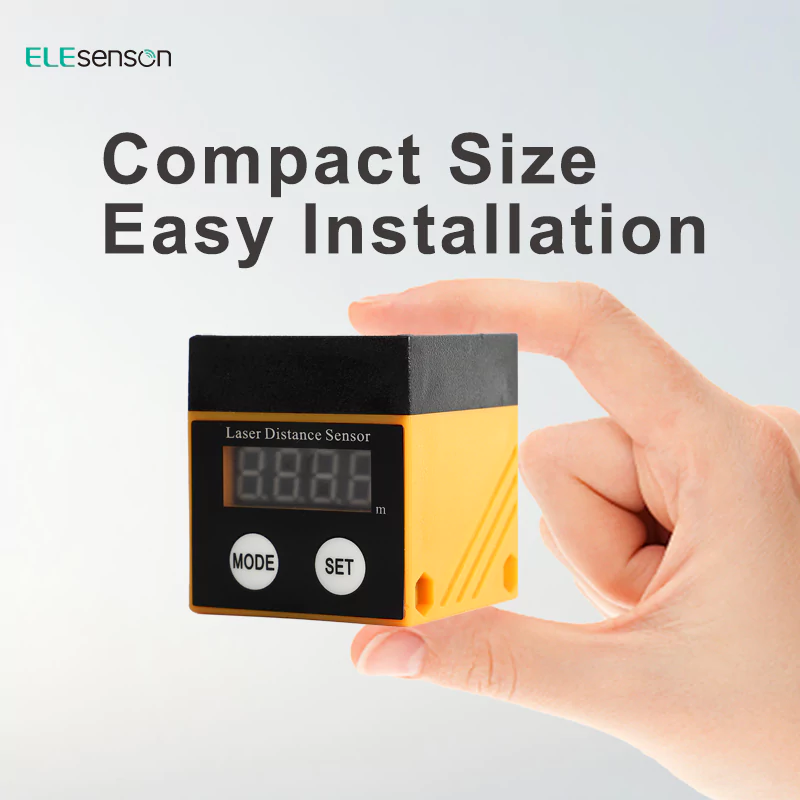

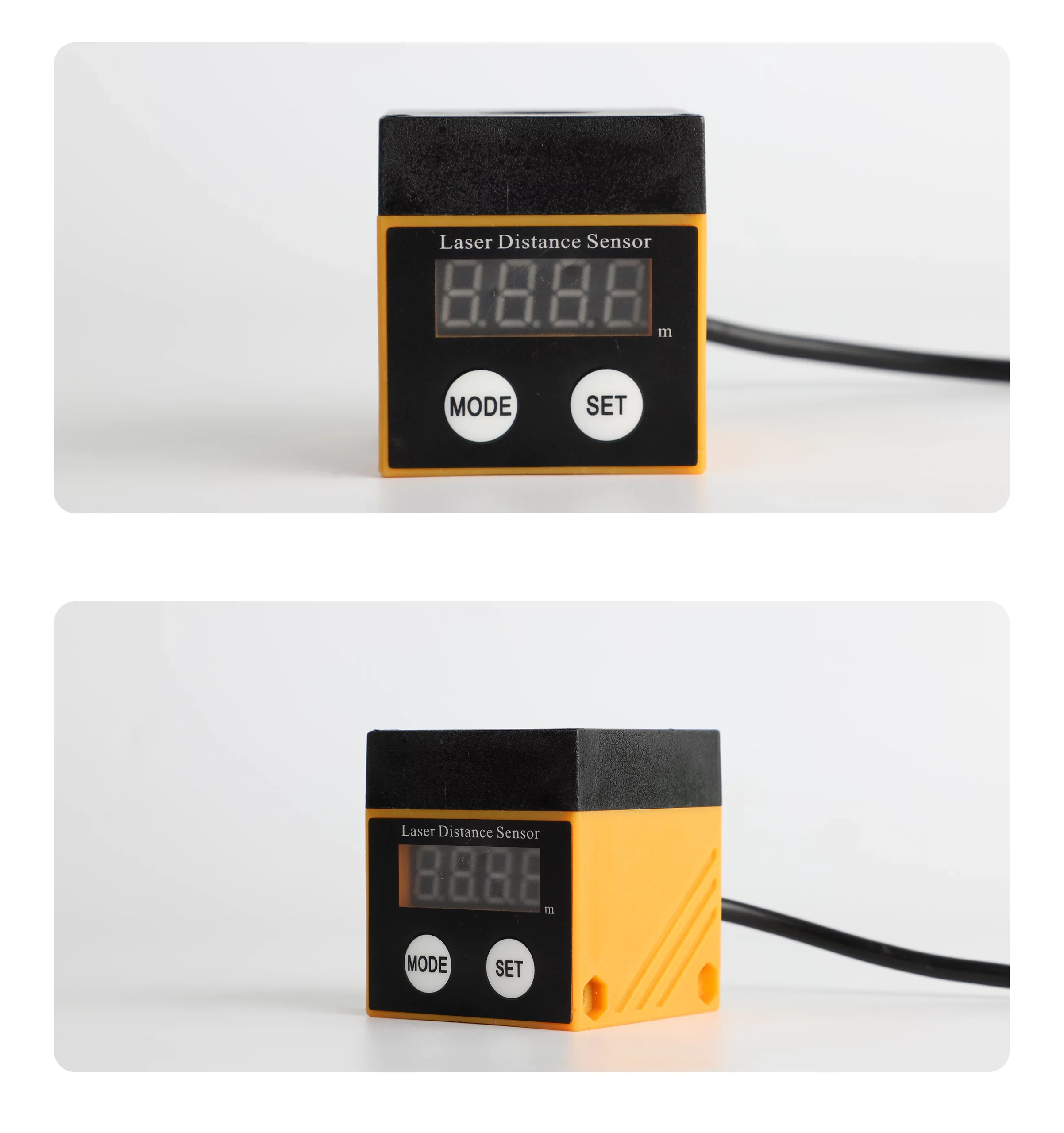

Compact Size & Easy Installation: Mini ABS housing with 4-digit LED display and physical buttons for threshold and range adjustment. Comes with mounting screws for flexible embedded installation.
Product Specifications
| Technical Specifications | |||
|---|---|---|---|
| Performance Specifications | |||

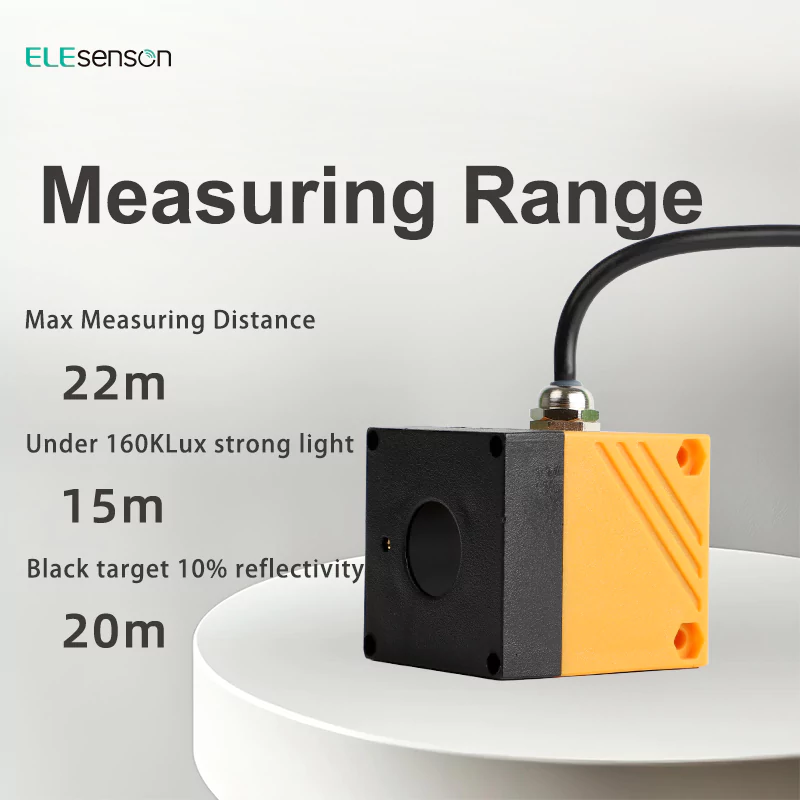

| Measurement Range | Maximum measurement distance: 22 m In bright light (160 kLux): 15 m For a black target with 10% reflectivity: 20 m |
||
| Measurement frequency | 1‑1000 Hz (default: 100 Hz) | ||
| Repeatability | ±8.0mm @50~2000mm ±20.0mm @2000~6000mm ±30.0mm @6000~20000mm |
||
| Absolute accuracy | ±20.0mm @200~2000mm；In the near‑blind zone (20‑200 mm), the error is relatively large. ±30.0mm @2000~6000mm ＜1% @6000~20000mm |
||
| Multi‑target detection | Bimodal | ||
| Temperature compensation | YES | ||
| Reflectance Correction | Yes, the deviation for targets of different colors is less than 5 mm. | ||
| Blind spot | 0.03m | ||
| Light source | |||
| Work laser | 905nm，Class 1 | ||
| Field of View (FOV) | ＜2° | ||
| Spot size | Φ3.5cm@1m；Φ11.5cm@5m Φ23cm@10m；Φ50cm@20m |
||
| Pointing laser | 635nm,Class 2 | ||
| Work Environment | |||

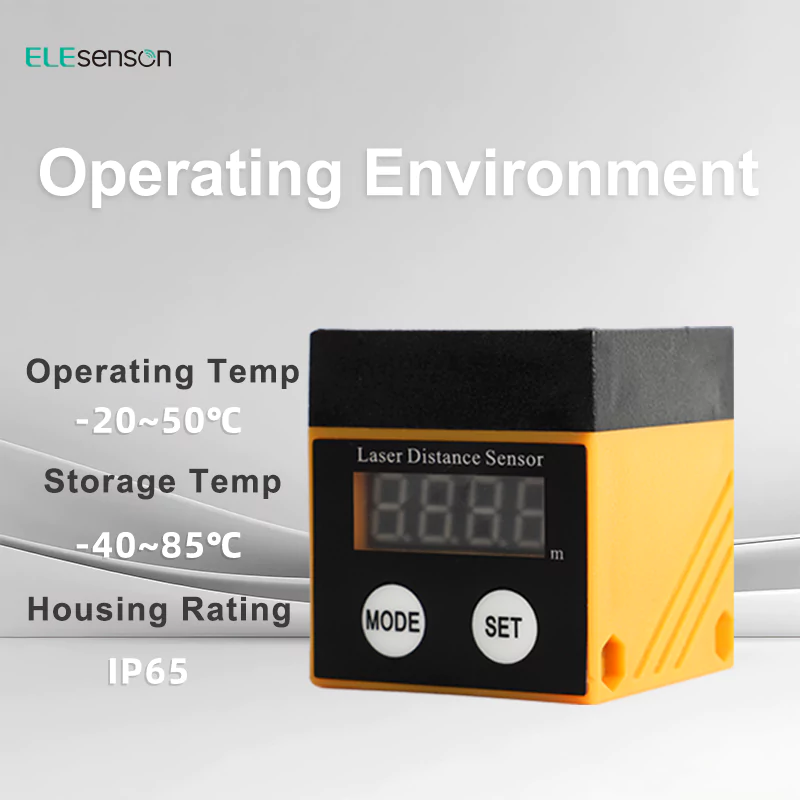

| Operating temperature | -20~50℃ | ||
| Storage temperature | -40~85℃ | ||
| Enclosure Protection Rating | IP65 | ||
| Electrical Specifications | |||
| Operating voltage | DC+9~35V | ||
| Operating current | 107 mA @ 12 V: Laser on 103 mA @ 12 V: Laser off |
||
| Reverse protection | YES | ||
| Isolation | YES | ||
| Service life | More than 50000h | ||
| Output Interface | |||
| Model | ELS1‑N | ELS1‑P | ELS1‑R |
| Output Interface | Two NPN channels Normally open/normally closed |
Two PNP channels Normally open/normally closed |
RS485‑Modbus + 4…20mA |
| Maximum current load for digital outputs | 100mA | 100mA | — |
| Maximum load for analog output | — | — | 250Ω |
| Display button | |||
| Number of digits on the LED display | 4 | ||
| Button Functions | Adjustment of digital thresholds; Indication of laser switch; Adjustment of analog range | ||
| Mechanical Specifications | |||
| Weight | 73 g ± 3 g (weight tolerance for potting compound) | ||
| Housing | ABS | ||

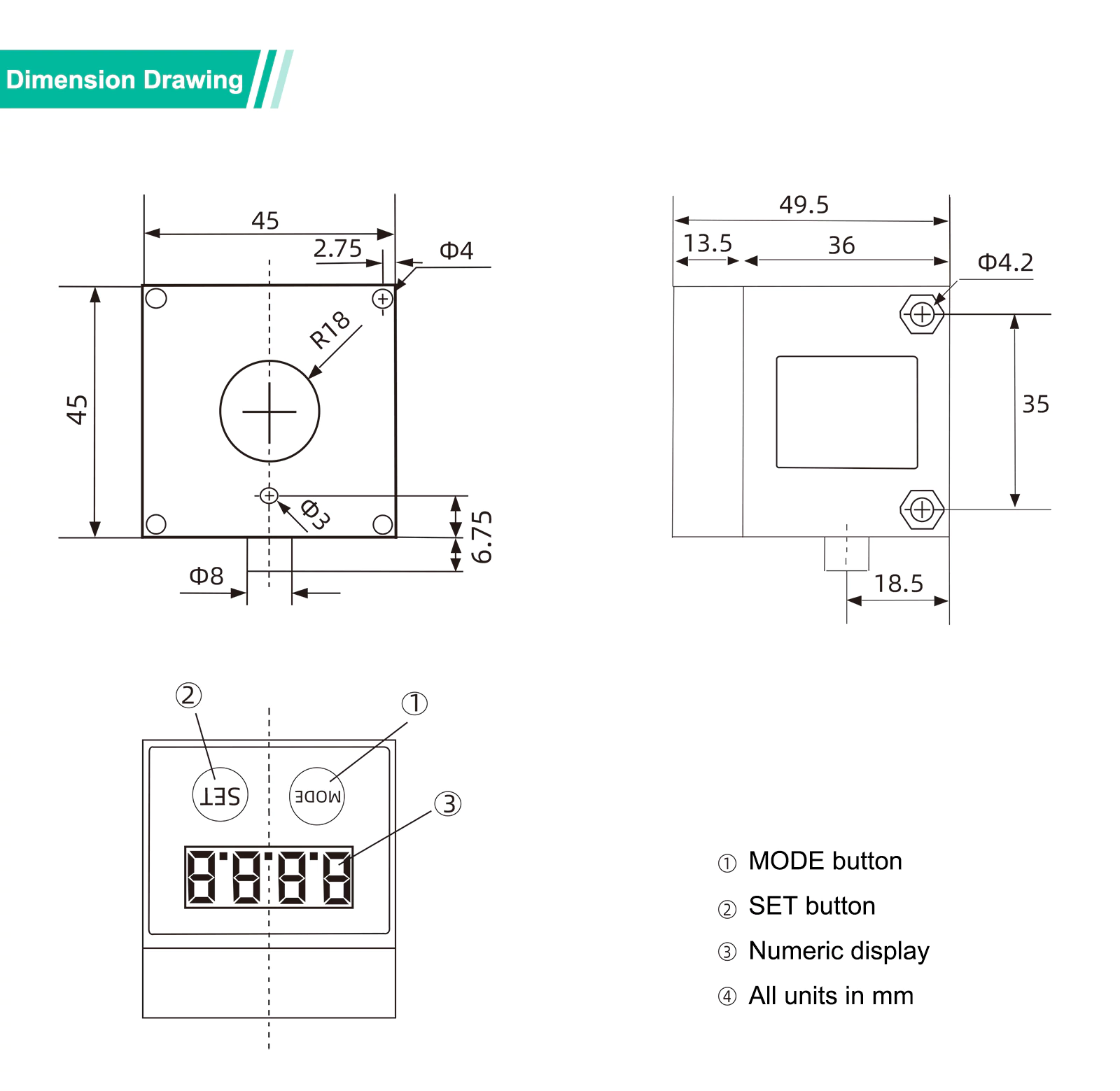

| Dimensions | 45*45*49.5mm | ||
| Accessories | |||
| bolt | 2 M4 x 55 mm screws | ||
| bracket | Optional | ||
| Electrical Connections | 1 x M8, 1‑meter cable | ||

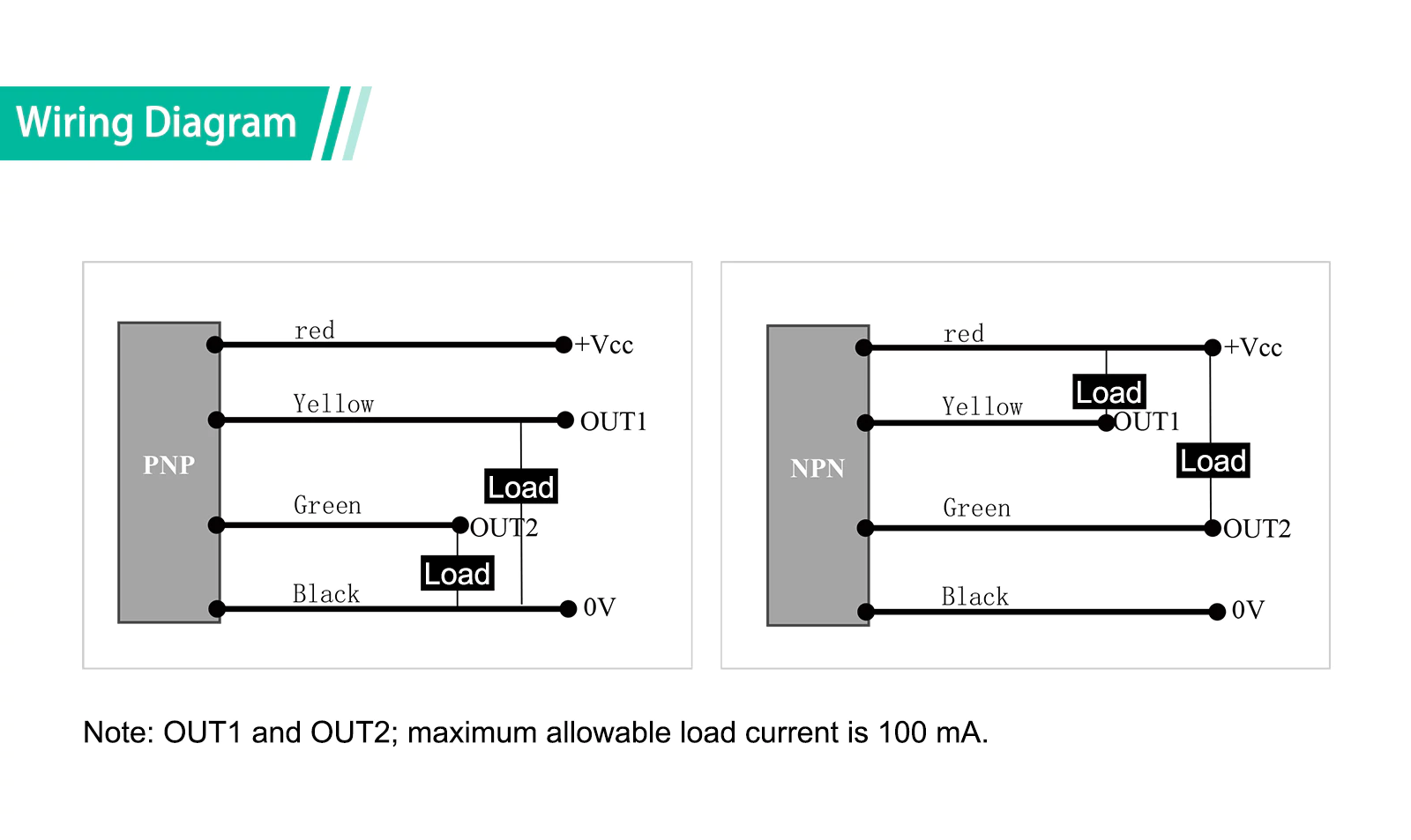

Cable Definition
| Cable Definition | |||
|---|---|---|---|
| No. | Wire Color | ELS1‑P/N | ELS1‑R |
| 1 | Red | VCC, DC9~35V | VCC, DC9~35V |
| 2 | Black | Power GND | GND, Analog GND |
| 3 | Yellow | Out1 | RS485 A |
| 4 | Green | Out2 | RS485 B |
| 5 | Blue | N/C | Analog Output |

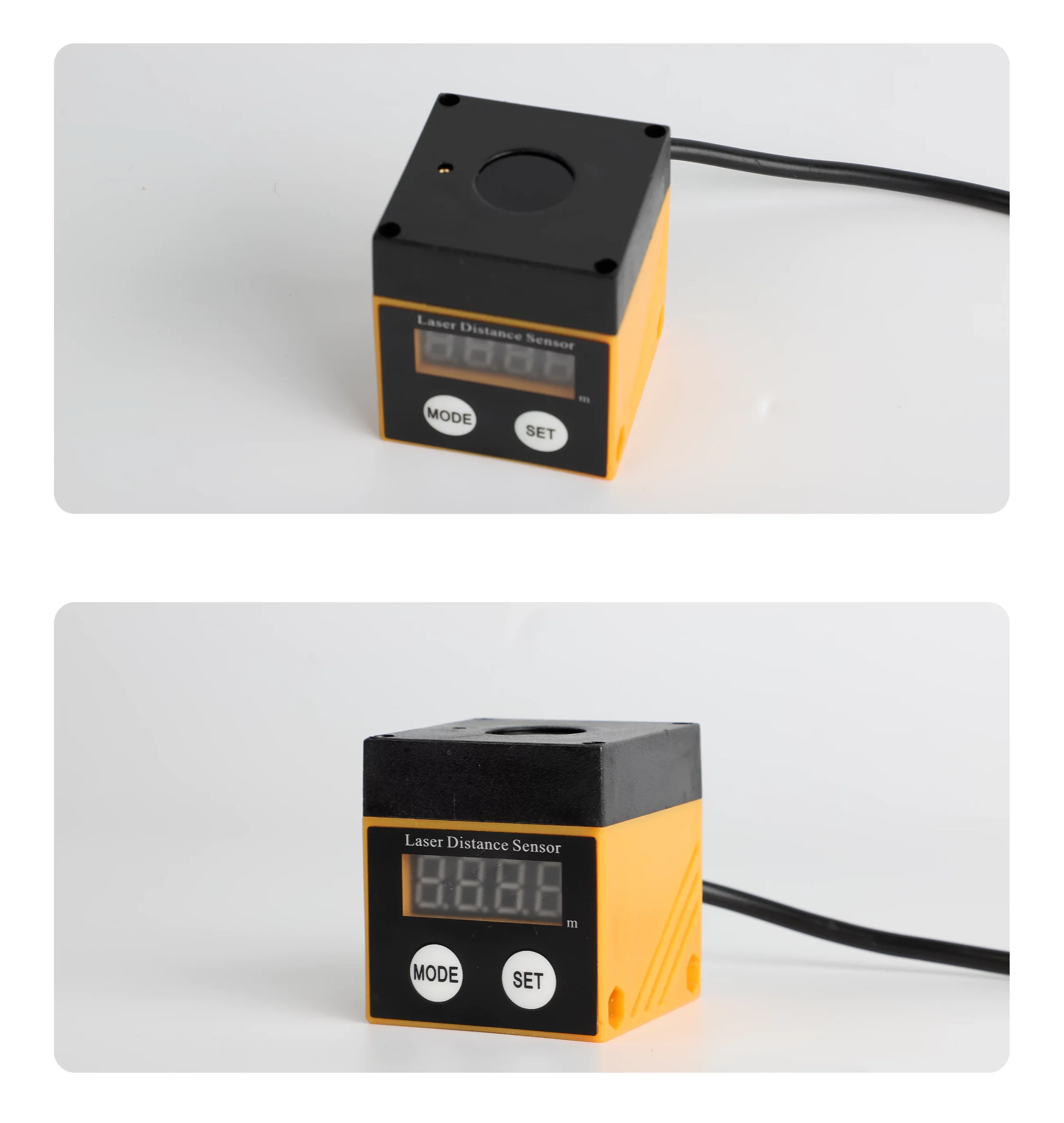

Product Details
