Description
Product Introduction

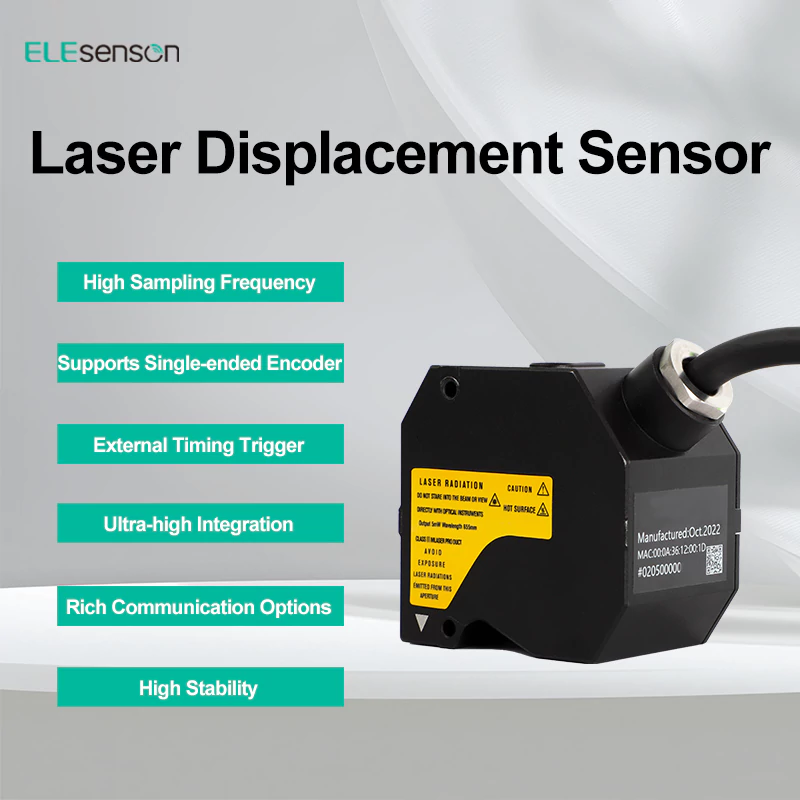

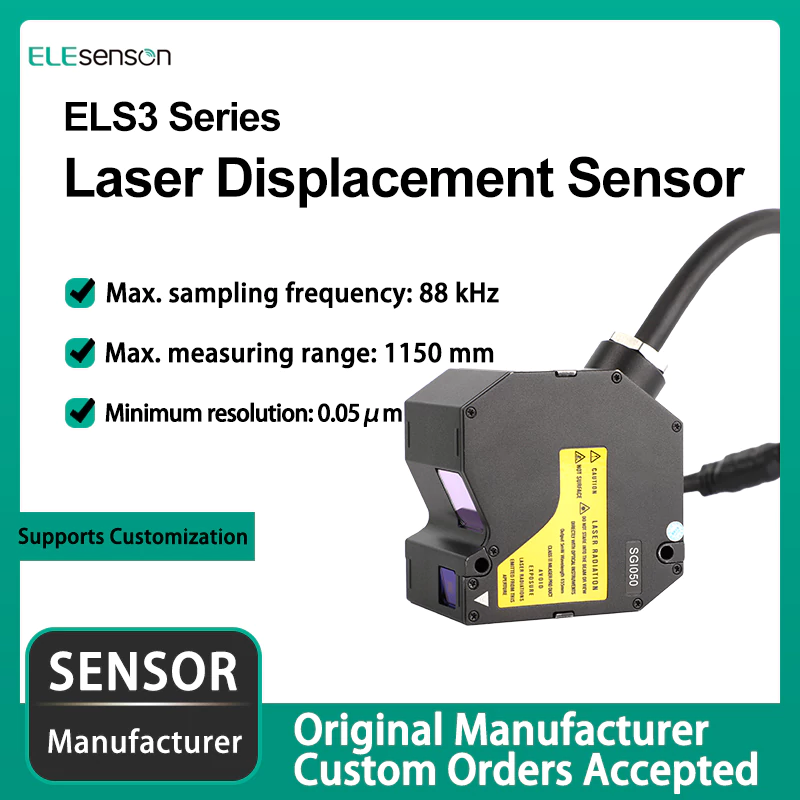

ELS3 Series Laser Displacement Sensor adopts an integrated design to manufacture highly integrated displacement sensors. It achieves repeat accuracy up to 0.05μm, equipped with high-flex shielded cable. The maximum sampling frequency reaches 88kHz, with a maximum measurement range of 900mm, supporting multi-channel IO input and output interfaces.
Product Advantages
88kHz
Max Sampling Frequency
0.05μm
Repeat Accuracy
Multiple Communication Interfaces
Supports Ethernet port, analog output and other communication options
120W
Max Data Storage

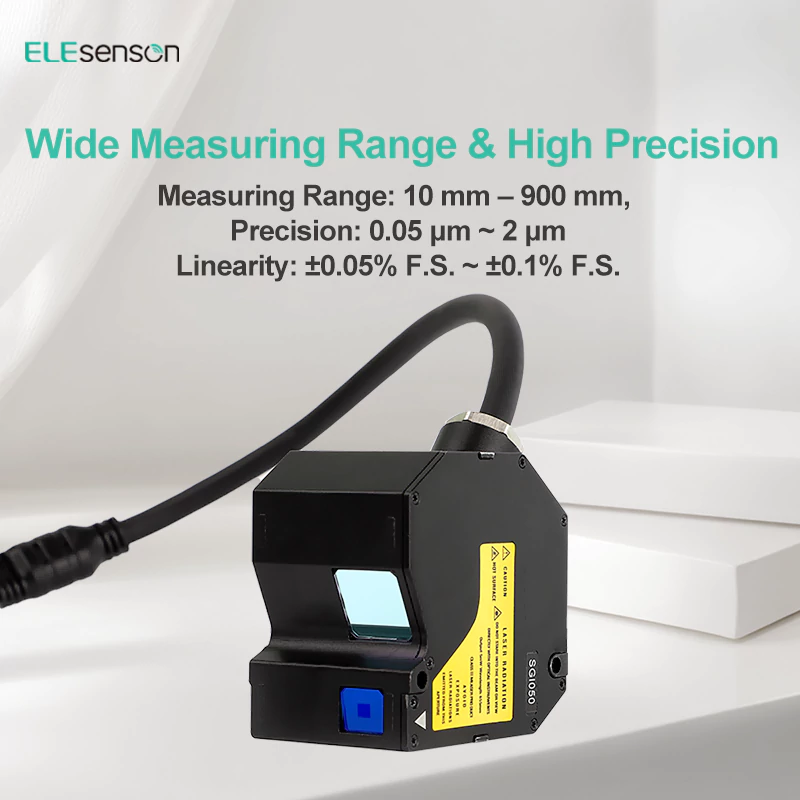

900mm
Ultra-long Measurement Range

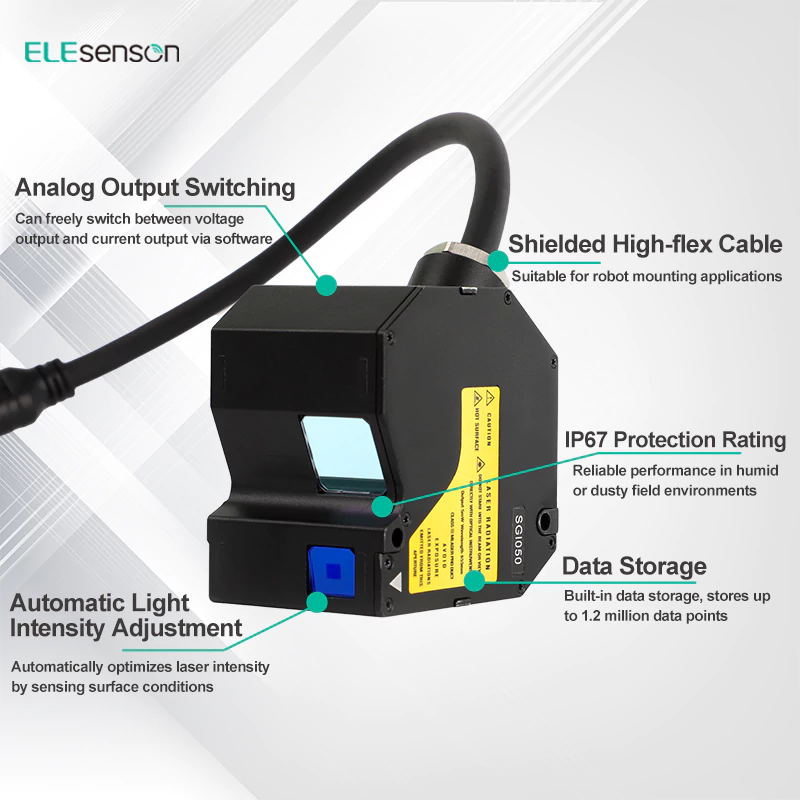

High-flex Shielded Cable
Compatible with robot arms, free from wiring constraints
Technical Specifications
| Technical Specifications | ||||
|---|---|---|---|---|
| Item | ELS33030 | ELS33080 | ELS35050 | ELS35150 |
| Reference Distance (CD) | 30mm | 80mm | 50mm | 150mm |
| Measuring Range | -5mm~5mm | -17mm~15mm | -9mm~8mm | -47mm~35mm |
| Light Source | ||||
| Light Source Wavelength | 655nm | |||
| Laser Class | Class IIIa (FDA CDRH 21 CFR Part 1040.10) | |||
| Laser Output Power | 5mW | |||
| Spot Size | ||||
| Small Optoelectronics | Φ60μm | Φ110μm | Φ75μm | Φ190μm |
| Width Optoelectronics | 60*400μm | 110*720μm | 75*400μm | 190*1300μm |
| Repeatability | 0.05μm | 0.2μm | 0.025μm | 0.25μm |
| Linearity (F.S.) | ±0.5% F.S. | ±0.02% F.S. | ||
| Temperature Characteristic | ±0.01% F.S./°C | |||
| Sampling Frequency(Hz) | 1/2/5/10/20/50/88kHz | 1/2/5/10/20/50/88/200/400/590kHz | ||
| Input and Output | ||||
| Communication Port | 1×100Base-TX/1000Base-T Ethernet, 1×RS232 | |||
| Analog Output | 4CH Analog Output, voltage/current switchable | |||
| Encoder Input | 1 set Differential Encoder | |||
| Digital Input | 14CH: timing, zero-reset, reset, laser control, recipe switch | |||
| Digital Output | 16CH Judgment Status Output | |||
| Operating Temperature | 0~50°C | |||
| Storage Temperature | -20~70°C | |||
| Operating Humidity | 35-85% RH non-condensing | |||
| ESD Protection | Contact 4kV, Air 8kV (IEC 61000-4-2) | |||
| EFT Protection | Power 2kV, Signal 1kV (IEC 61000-4-4) | |||
| Shock Resistance | 50Gs/3ms per axis (IEC 68-2-27 Ea) | |||
| Vibration Resistance | 10Gs (10–500Hz) (IEC 68-2-6 Fc) | |||
| IP Rating | IP67 (IEC60529) | |||

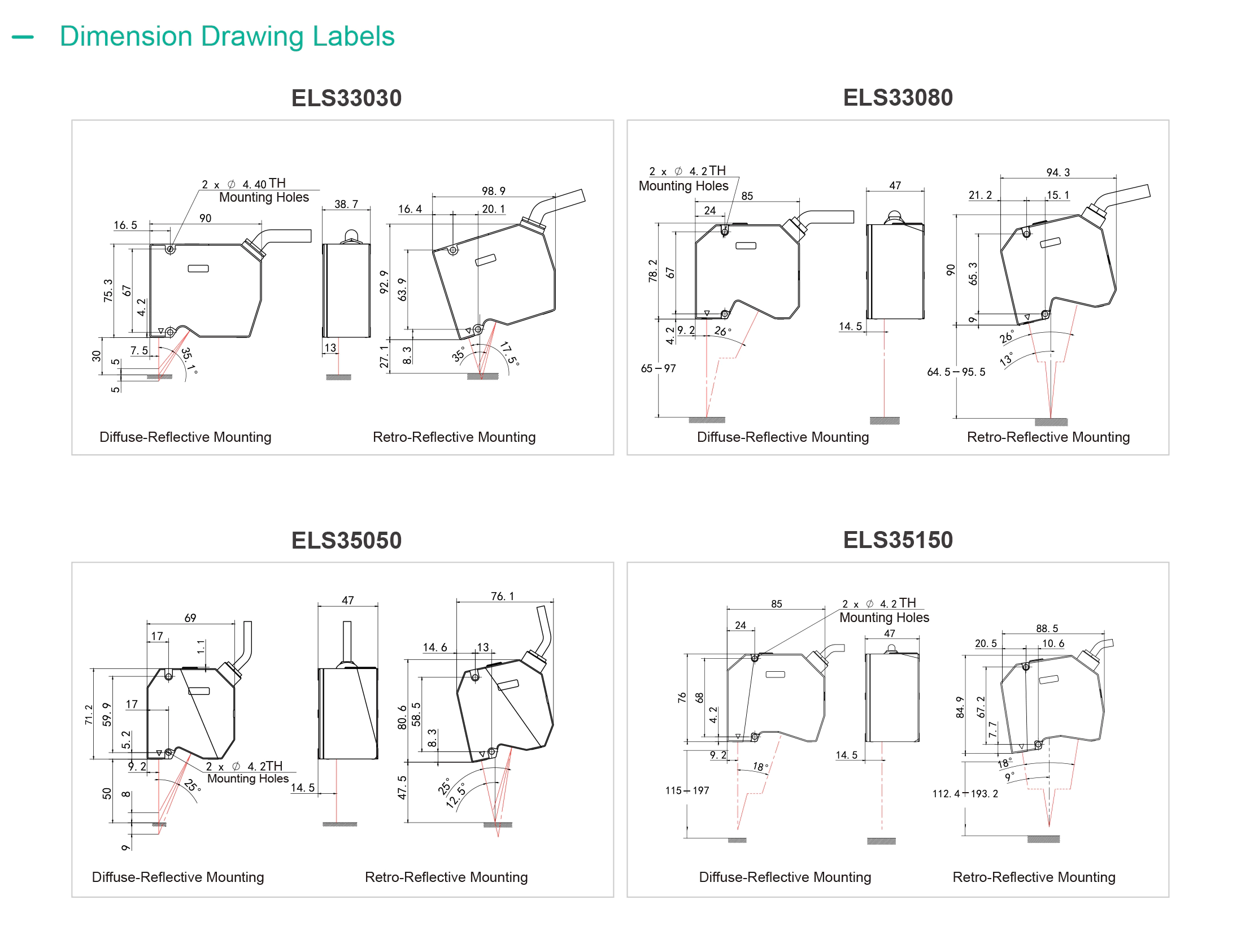

| Dimensions (W×H×D) | 90x75x38mm | 85x77x47mm | 69x71x47mm | 85x76x47mm |
| Data Cable (Cabling) | 2-3m/5m/10m | |||
| Weight (incl. cable) | 324g | 376g | 323g | 370g |
