Description
Product Introduction

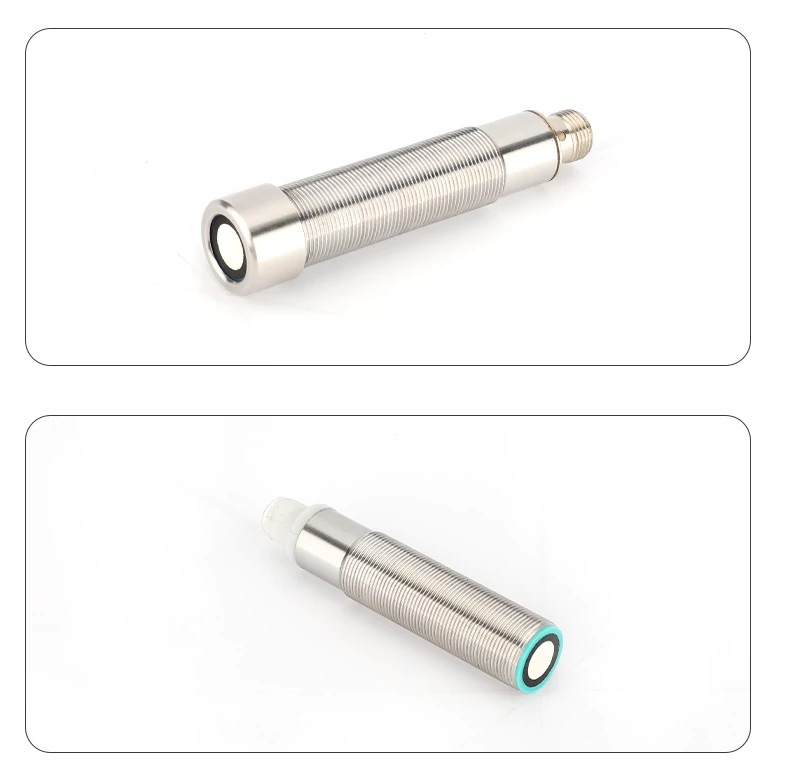

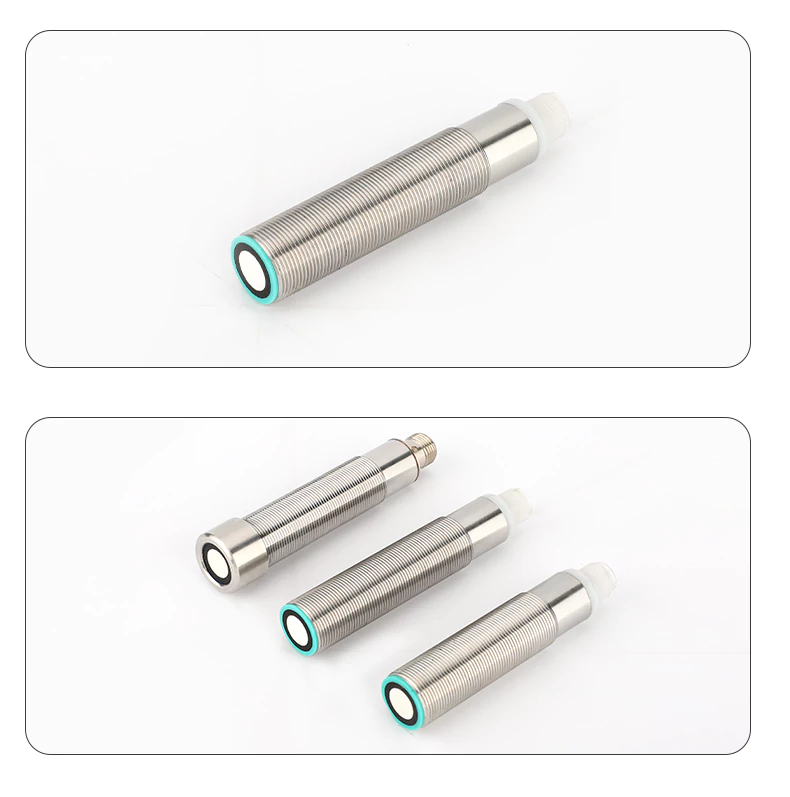

This ultrasonic sensor delivers reliable measurement independent of target material, supporting both switching and analog output signals. Equipped with 360‑degree protection structure, it is waterproof, oil‑proof, dust‑proof and corrosion‑resistant, stable in dusty and water‑mist industrial environments. Built‑in multi‑circuit protection including short‑circuit, overload and reverse‑polarity protection safeguards both sensor and peripheral equipment. Featuring strong acoustic intensity, small blind zone, high anti‑EMI capability and fast response, it can detect small‑size objects precisely. Wide DC10‑30V working voltage suits diverse industrial automation scenarios, custom service is available.
Product Features
- Material‑independent detection, support switching & analog output
- High sensitivity, fast response and high measurement precision
- Waterproof & oil‑proof, suitable for dusty and water‑mist environments
- Safe explosion‑proof design, strong anti‑interference performance
- Multi‑circuit protection: short‑circuit, overload, reverse‑polarity protection
- Small blind zone, powerful acoustic signal for small object detection
- Anti‑electromagnetic interference, built‑in intelligent sensing chip
- Wide operating voltage DC 10‑30V, stable long‑term operation
- Corrosion‑resistant metal housing, custom‑support available
Product Specifications
| Technical Parameters | |
|---|---|
| Item | Specifications |
| Measuring Range | 60~1000mm |
| Blind Zone | 0~60mm |
| Standard Test Plate | 300*300mm |
| Angle | 10° |
| Repeatability | 0.3% |
| Operating Voltage | 10~30VDC |
| Temperature Drift | 0.05%/℃ (Built‑in Temperature Compensation) |
| Linearity | <1% |
| Resolution | 0.1% of full range (Min.0.5mm) |
| Response Time | 125ms |
| EMC Standard | GB/T17626.2‑2006 / GB/T17626.4‑2008 |
| Power Consumption | 20mA |
| Protection Circuit | Reverse Polarity Protection & Instant Overvoltage Protection |
| Operating Temperature | ‑20℃~+80℃ |
| Storage Temperature | ‑40℃~+80℃ |
| Housing Material | Nickel‑plated Copper (Custom Stainless Steel Available) |
| Cable Length | 2m |
Product Details
