Description
Product Introduction

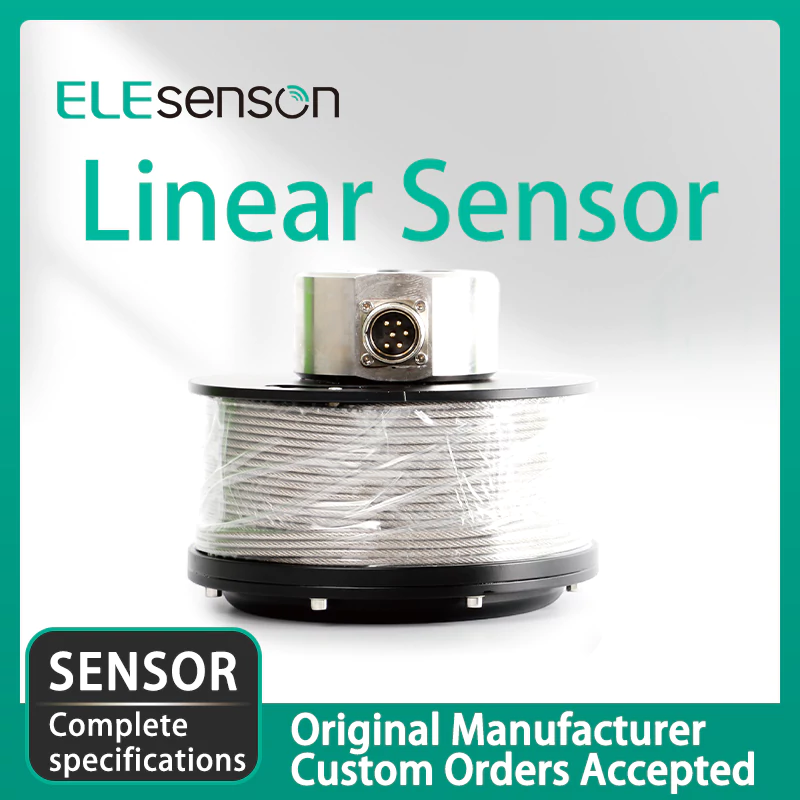

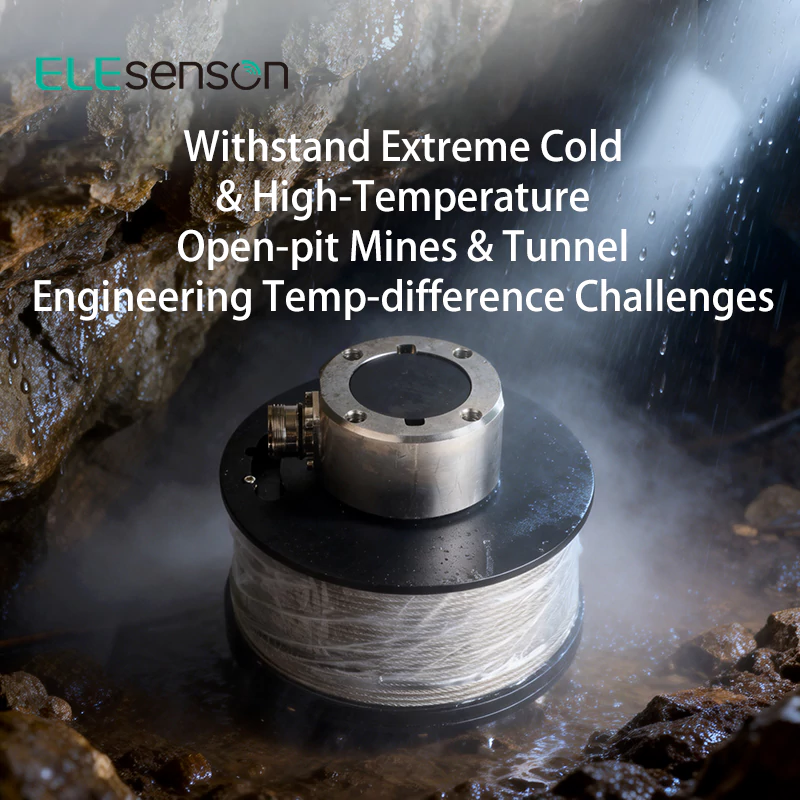

This linear sensor (draw‑wire type) is aftermarket replacement spare part compatible with Epiroc rock drill rigs. It delivers precise displacement monitoring for feed beam stroke, boom deflection and rod handling. Rugged build ensures stable signal output in harsh underground mining & tunneling environments. Not original OEM product, no affiliation with Epiroc.

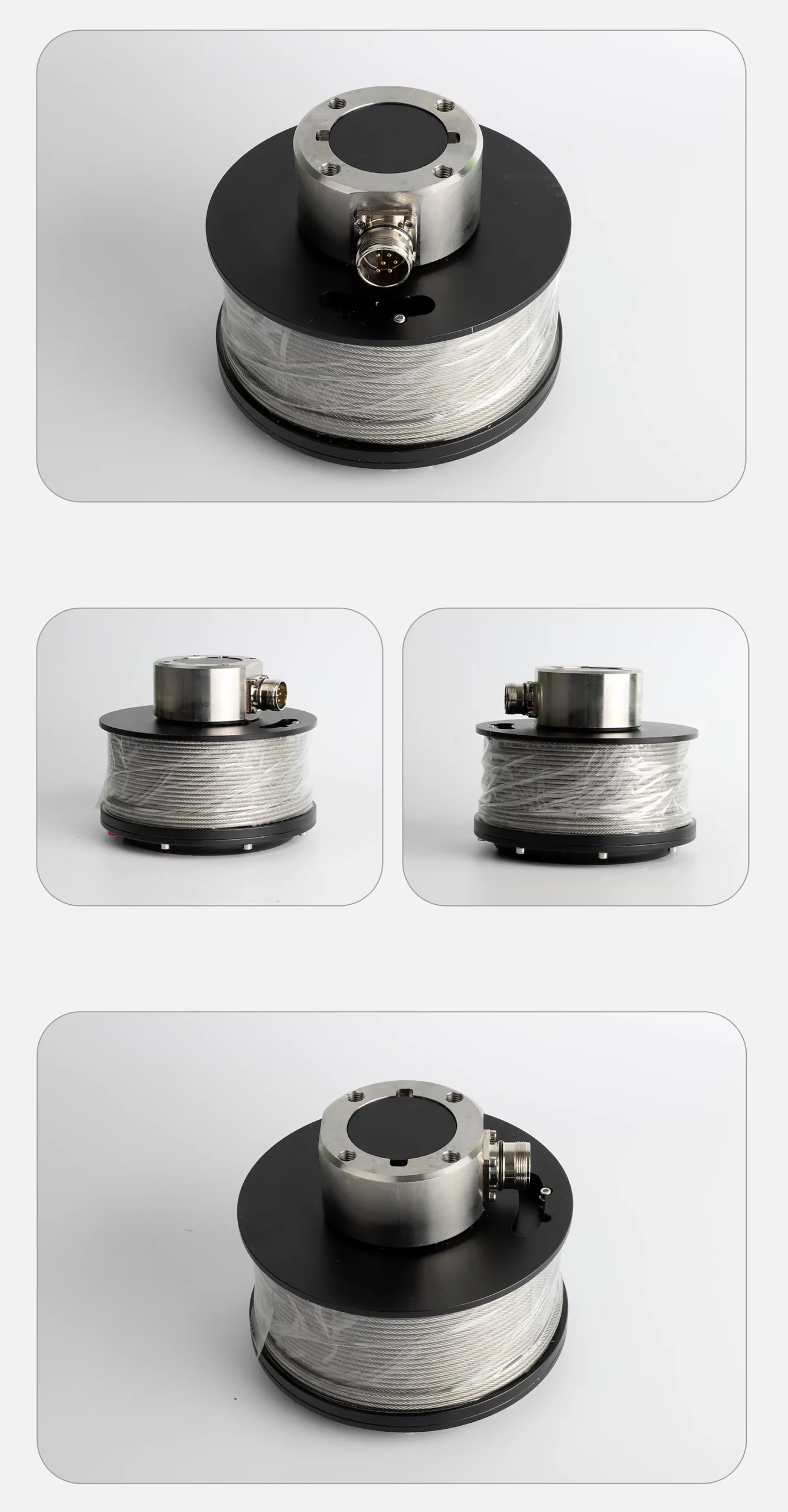

Product Features
• Heavy‑duty draw‑wire linear sensor specially built for rock drill rig mining equipment
• High‑precision displacement measurement for feed‑beam stroke closed‑loop control
• Accurate detection for boom deflection and automatic rod‑handling displacement feedback
• High sensitivity, wear‑resistant structure, durable for high‑vibration mining working sites
• Reliable signal transmission, improves hole‑forming rate of intelligent rock‑drilling systems
• Wide measuring range, adaptable to multiple rock drill automation upgrading scenarios
• Robust housing, works steadily under complex underground tunnel & mine conditions
• Aftermarket replacement linear sensor compatible with Epiroc rock drill series
• Compact structure, easy mounting for equipment retrofitting & maintenance
Product Specifications
| Technical Parameters | ||
|---|---|---|
| Category | Specifications | Description |
| Measuring Performance | ||
| Measuring Performance | Range:200~13000mm(Depends on model) | Covers short stroke to long stroke feed applications |
| Linearity:≤±0.1%FS | Meets high‑precision control for automatic drilling system | |
| Resolution:0.1~5mm | Max.0.001mm/pulse for digital type | |
| Repeatability:±0.05~0.5mm | Ensure long‑term measuring stability | |
| Electrical Parameters | ||
| Electrical Parameters | Power Supply:12~24VDC | Compatible with vehicle power supply system |
| Output Signal | Incremental ABZ pulse, Absolute SSI/CANopen, Analog 4‑20mA/0‑10V | |
| Connector | Custom waterproof connector(M12 8‑pin), IP67 protection | |
| Environmental Adaptability | ||
| Environmental Adaptability | Operating Temp.:‑40℃~+85℃ | Wide temp range for underground & open‑air harsh condition |
| IP Rating:IP67 | Dustproof, waterproof, oil resistant & anti‑vibration | |
| Vibration/Shock Resistance | 10~2000Hz /100g(6ms) | |
| Mechanical Characteristics | ||
| Mechanical Characteristics | Housing Material | Stainless steel/Aluminum alloy, corrosion resistant |
| Mounting | Flange/Bracket mount, fits feed beam structure | |
| Pull Wire | Stainless steel cable, wear‑resistant & tensile resistant | |
