Description

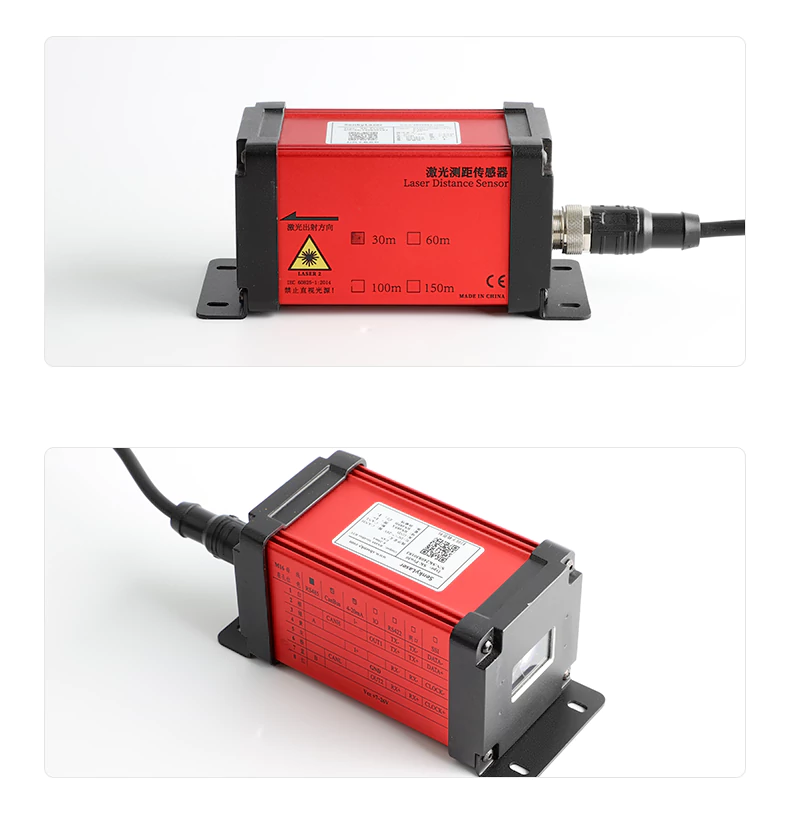

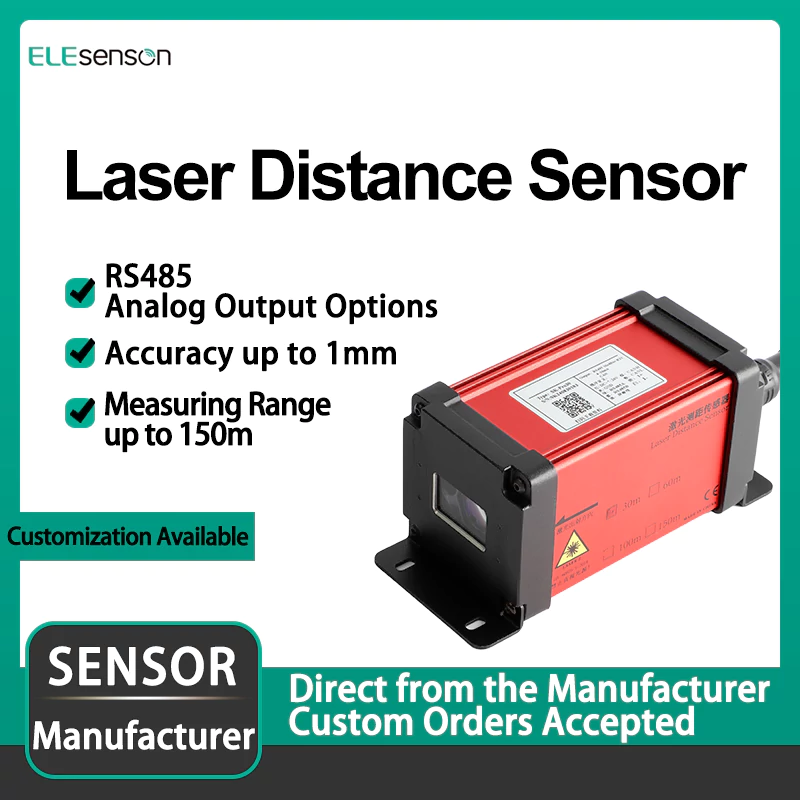

Product Introduction
SDC Series Laser distance sensor delivers high‑precision millimeter‑level distance measurement for industrial applications. With up to 1 mm resolution, it supports long‑range detection up to 150 m, working stably even under strong outdoor sunlight. Compact‑size and low‑power design allows easy integration into limited‑space systems. Multiple output options including RS485 and 4‑20 mA ensure reliable data transmission for automation monitoring tasks.
Product Features

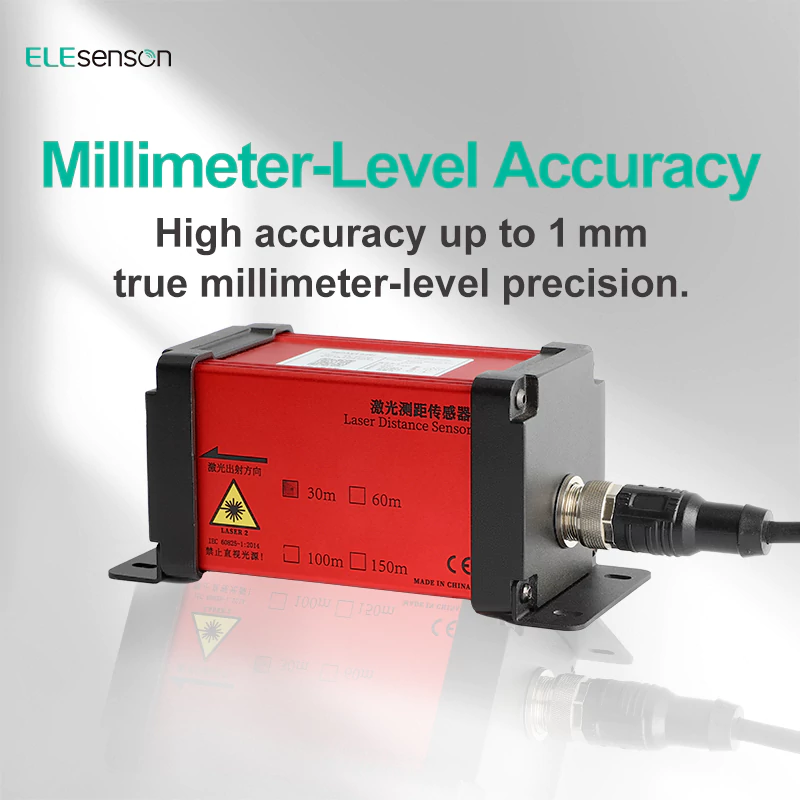

• Millimeter‑level high precision: resolution up to 1 mm, absolute accuracy ±2 mm
• Long measuring range: max 150 m for natural targets; indoor 0.03‑100 m, outdoor 0.03‑30 m

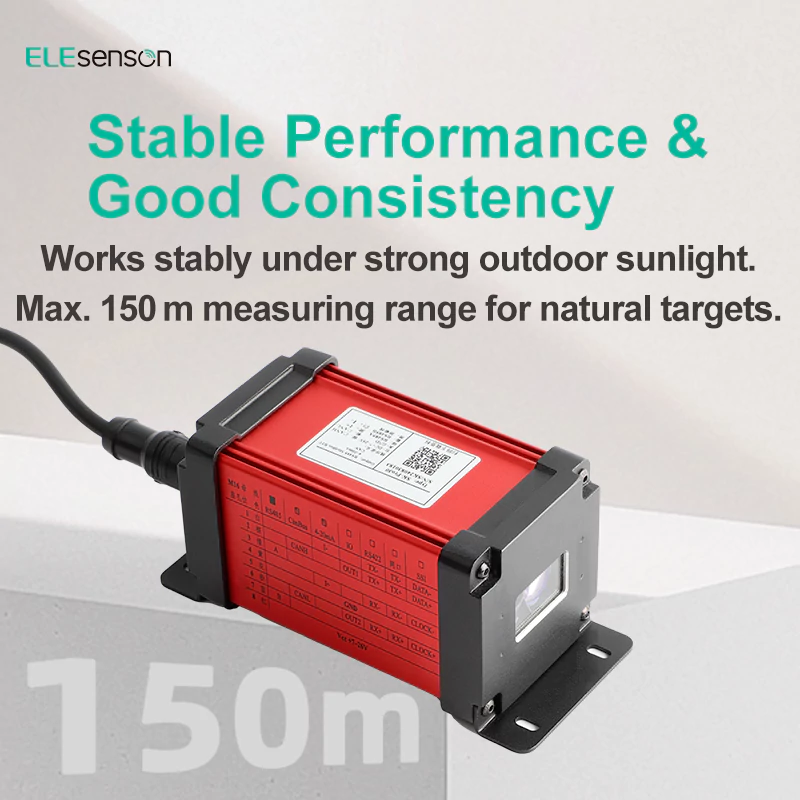

• Excellent anti‑interference performance, stable operation under strong outdoor sunlight
• Fast response, high sensitivity and consistent measuring performance
• Multiple signal outputs: RS485 and 4‑20 mA analog output for diverse host systems
• Wide operating temperature: ‑30℃ ~ +60℃, adapts to harsh field environments

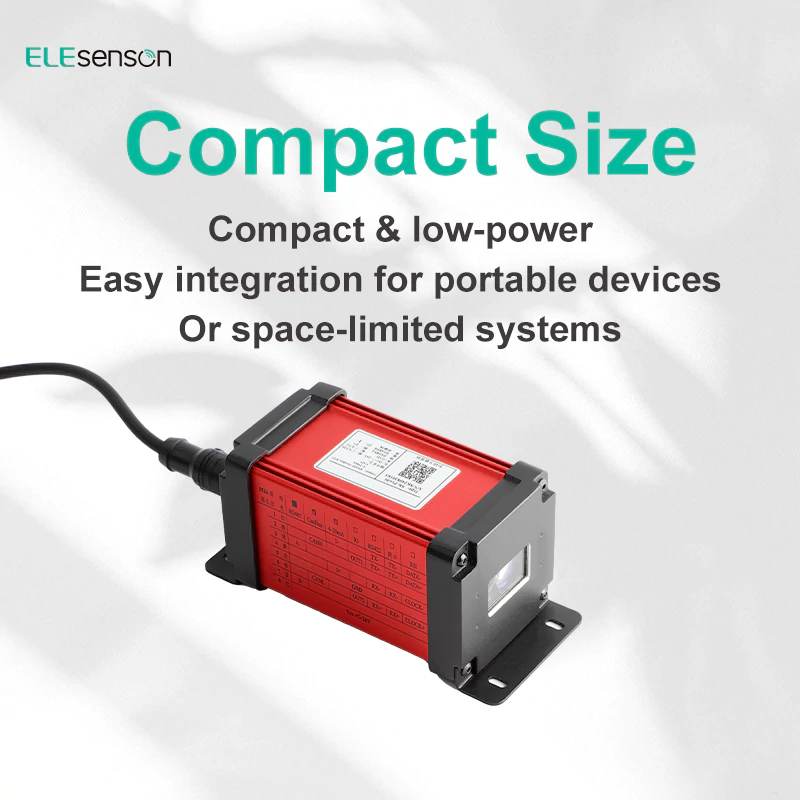

• Compact dimension & low power consumption, convenient for equipment integration
• Class‑2 safe red‑laser source, DC24V power supply for industrial automation scenarios
Product Specifications
| Specification Parameters | |||
|---|---|---|---|
| Item | SDC‑30 | SDC‑60 | SDC‑100 |
| Model | SDC‑30 | SDC‑60 | SDC‑100 |
| Measuring Range | 0.03~30m @90% reflectivity 0.03~20m @6% reflectivity |
0.03~60m @90% reflectivity 0.03~20m @6% reflectivity |
0.03~100m @90% reflectivity 0.03~20m @6% reflectivity |
| Repeatability | ±0.5mm | ||
| Accuracy | ±1mm | ||
| Measurement Frequency | Single, 5Hz,10Hz,20Hz,30Hz | ||
| Laser Source | 650~660nm,Class II (0.75~0.95mW) | ||
| RS485 | Modbus‑RTU, max 255 units parallel connection | ||
| RS422 | Modbus‑RTU, max 255 units parallel connection | ||
| Analog Output | 4‑20mA / 0~20mA / 0~24mA | ||
| CAN | CAN2.0B standard & extended frame supported | ||
| Ethernet | Ethernet | ||
| Operating Voltage | DC +7~26V | ||
| Operating Current | 100mA@Vin=10V ＜150mA @Vin=10V |
||
| Reverse Polarity Protection | Available | ||
| Weight | 297g | ||
| Dimension | 115*52*52mm | ||
| Housing Material | Aluminum Alloy | ||
| Operating Temp. | -20~60℃ | ||
| Storage Temp. | -30~70℃ | ||
| IP Rating | IP65 | ||
| Mount Bracket | Optional | ||
| Electrical Connection | 1m 8‑core shielded cable | ||
| Accessories | Mount bracket & screws (optional) | ||

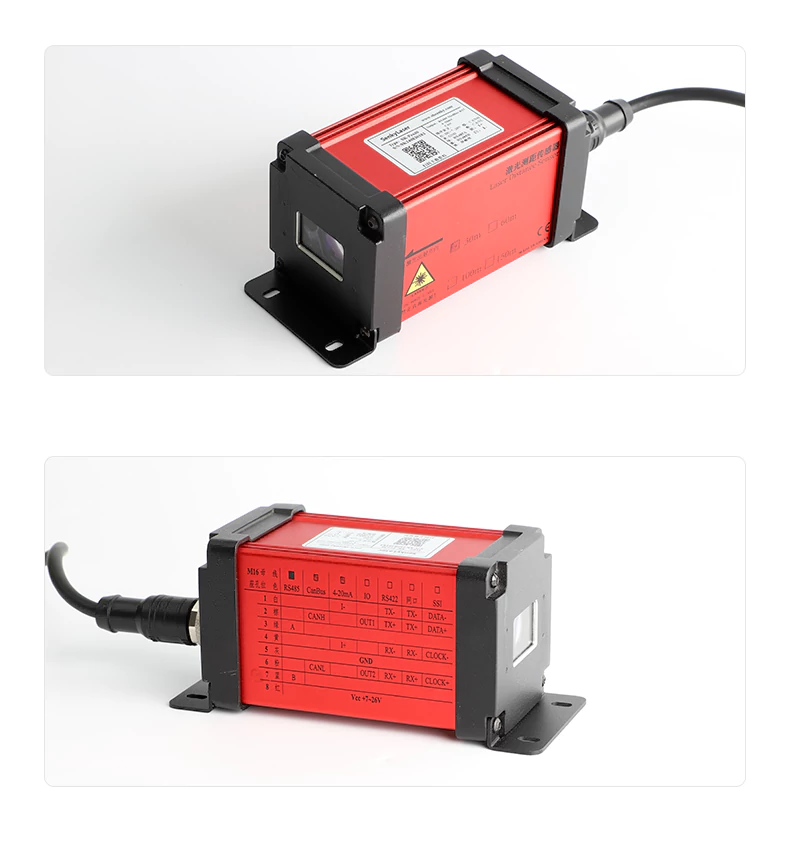

Wiring Instructions
| M12 8‑Pin Female Shielded Cable, Length:1m | ||
|---|---|---|
| Pin No. | Wire Color | Default Definition |
| 1 | White | I‑ Analog Current Output Negative |
| 2 | Brown | CANH |
| 3 | Green | RS485 A |
| 4 | Yellow | I+ Analog Current Output Positive |
| 5 | Grey | GND Power Ground |
| 6 | Pink | CANL |
| 7 | Blue | RS485 B |
| 8 | Red | VCC Power Positive |

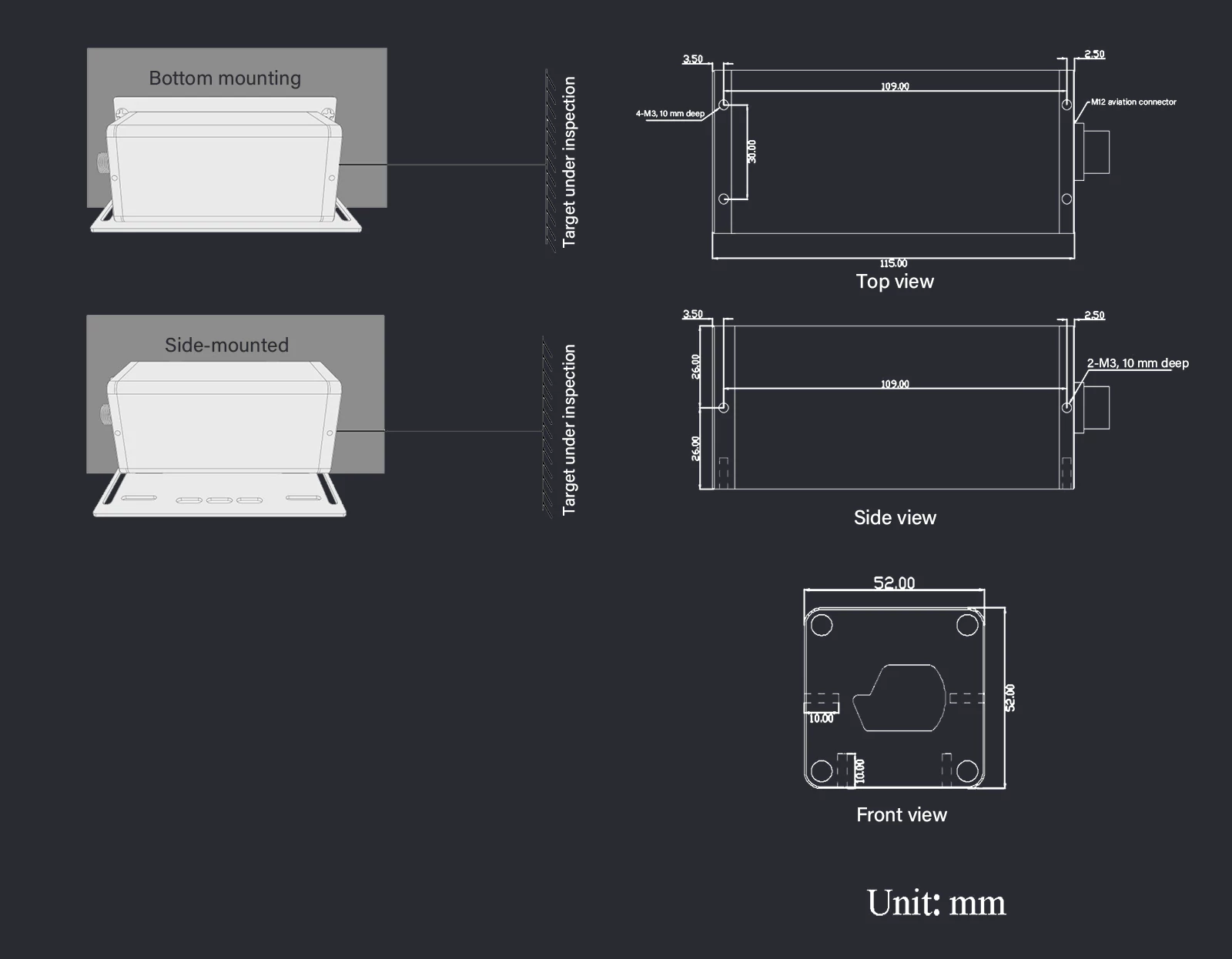

Dimension Drawing
